Vis600 Audio And Video Life Detector - China

VIS600 audio and video life detector to enable rescue workers see buried under the rubble of the trapped, and communicate with.

Product configuration of infrared camera and 360 degree rotating camera, 360 degree rotation and 180 degrees vertical flip and truly non corner detection, built-in 12 star bright white LED auxiliary lighting, even in the absence of light can also be used.

Through the probe with the narrow gap between the search gets under the ruins of the trapped image and sound information.

Can detect buried trapped in the rubble of the victims, the transmission of video image to the display, the rescue personnel can see the buried under the debris trapped, and Exchanges.

Can provide clear audio voice and video transmission function.

At the same time through wireless receiving end of the image and sound information transmission to the rear of the command center.

Can be used for earthquake, landslides, collapse, deep well, mine rescue.

Equipped with high-definition LCD screen, double probe rod, double probe host compact and lightweight, can manage a single hand, operated by a single person.

Cable optional 10-30 meters optional by 2.4G wireless transmission, the open area of up to 50 meters, wireless receiver maximum support 32GB memory expansion.

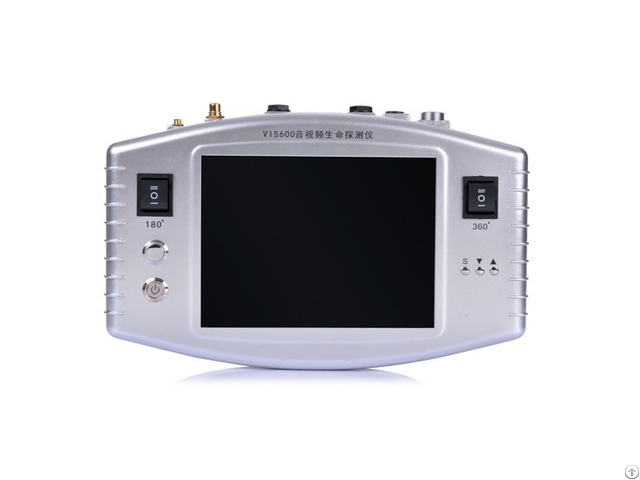

1 - Host parameter

Display: 8 inch LCD color LCD screen

Display area: 162.048 (W) *121.536 (H) mm

Resolution 1024 (RGB) *768 (XGA)

Operating temperature: -20~50

Built in 2.4G wireless transmission device

Video output: FBAS

Perspective 89 (Deg)

Brightness: 250 (cd/m2)

Power supply: 3 3.7V lithium battery

Job length: more than 6 hours

Size: 300mm*190mm*45mm

Weight: 1000g

The panel is provided with a control probe four direction rotating button, a wireless transmission switch button, and a power button.

Three buttons on the right can control the rotation speed of the probe, the light switch and the brightness.

2.360 degree rotating camera

Pixel sensor: color 1/3 points EXview HAD CCD&CCD SONY

Total pixels: 976 (H) *582 (V) minimum illumination 0.1Lux

Resolution: 680TVL

Image format: PAL standard

Signal to noise ratio: >50dB

Video output: ohms CVS 1Vp-p-75 (embedded anti interference processing)

Angle of view: 121

Miniature rotary camera, maximum diameter 43mm

Can rotate 180 degrees 360 degrees flip

IP67 & tolerance underwater 10 m pressure

Ten speed and brightness adjustment

The built-in auxiliary lighting: 12 bright white LEDs (working life longer than 50000 hours) 3 - Infrared probe

Photosensitive chip: CCD automatic induction open source infrared intelligent infrared lamp

Effective pixel 45W

Photosensitive area 4.08mm*3.12mm

Definition: lines 700TV

Minimum illumination 0.5Lux 4 - Telescopic probe

Telescopic probe, length 0.8m~1.8m;

With 10m cable, anti off open plug; (cable length can be customized)

The probe is connected with the probe by soft connection, and can be bent at any angle; 5 - Wireless receiver

2.4G hand held PDA wireless transmission receiver

Transmission distance: more than 50 meters

Built in 8G memory card, can store search video support 32G extension.

Can take pictures, video

5 inch HD LCD display

Can work continuously for more than 9.5 hours

Support multiple languages

Support for automatic shutdown, automatic shutdown

Built in 1W speaker

Rechargeable inside Li-battery
