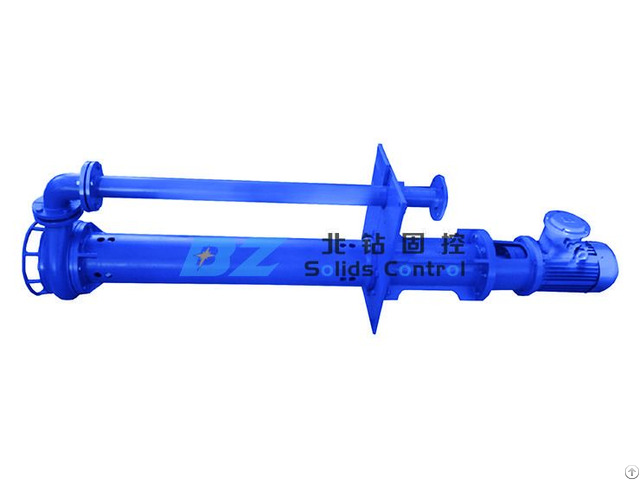

Vertical Single Stage Submersible Slurry Pump - China
price: 2353.00 Dollar US$
BZ Submersible slurry pump is with vertical single-stage, single-suction cantilever centrifugal pump structure, also known as vertical slurry pump.
BZ submersible slurry pump with a bearing seat, bearing seat, connecting tube connected to the pump hydraulic components.
Liquid discharged by discharge pipe parts, half open impeller, the impeller blade inlet stretches is equipped with mixing vane, which can deliver a high levels of fixed particle dielectric material.
The length of the pump insert liquid is usually between 800 mm and 2000mm, and can be customized according to customer requirements.
BZ submersible slurry pump in the mud cleaning system is often used to feed mud from mud tank to shale shaker, but also can be used as a feeding pump for the desander, desilter, etc.
BZYZ Submersible Slurry Pump Specification
Model Capacity
m3/h Lift Motor Speed Outlet EX Standard Weight Dimension
BZYZ30-040 30m³/h 10m 4kw 1450RPM(50HZ)/1750RPM(60H Z) DN50 ExdIIBt4/IECEX/ A-TEX 370kg 2620x500x720mm
BZYZ40-055 40m³/h 10m 5.5kw DN50 600kg 2700x500x700mm
BZYZ60-075 60m³/h 18m 7.5kw DN80 610kg 2650x500x700mm
BZYZ80-110 80m³/h 20m 11kw DN80 715kg 2750x580x730mm
BZYZ110-185 110m³/h 24m 18.5kw DN100 840kg 2900x600x900mm
BZYZ120-220 120m³/h 28m 22kw DN100 880kg 2950x600x900mm
BZYZ165-300 165m³/h 26m 30kw DN100 1300kg 3100x750x900mm
BZYZ240-370 240m³/h 24m 37kw DN150 1420kg 3160x700x1130mm
BZYZ270-450 270m³/h 30m 45kw DN150 1510kg 3190x700x1130mm Features:
.
No bearing and shaft seal between propeller and pump body, maintenance-free, high temperature resistant
· Cast alloy iron material, long service life
· Adopt famous brand explosion-proof motor and bearings
Company Contact:
- Posted By: Hebei BZ Solids Control Co.,Ltd
- Phone: +863165163735
- Address: Xiangfeng Street,Train Station Road,Sanhe City,Heb, Sanhe , Hebei , China
- Email:
- Website: http://www.bzsolidscontrol.com
Published date: October 10, 2020
- Business Description: BZ solids control is a manufacturer involving in research&development, production, sales and service of solids control equipment and system.
