Vertical Muffle Furnace - China
price: contact company for price

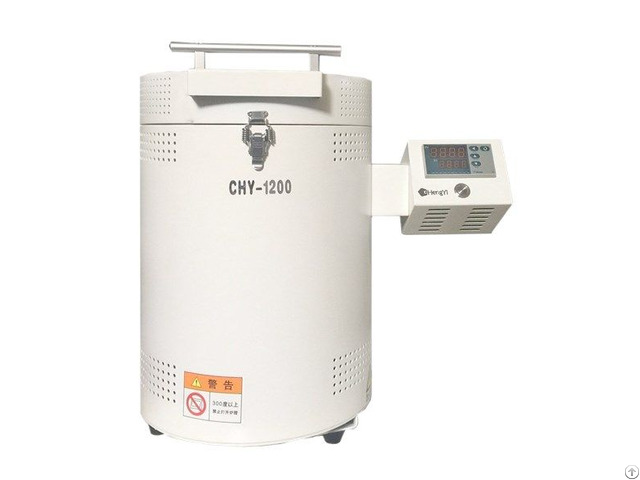

CHY-J1220 Laboratory Crucible Vertical Muffle Furnace Lab Muffle Furnace Manufacturer
Vertical Muffle Furnace CHENGYI Customized Muffle Furnace
1.150*150*200mm chamber dimension
2 - high quality ceramic fiber chamber
3 - PID Programmable controller
4 - Heavy duty double layer structure CHENGYI Muffle Furnace APPLICATION
1 - laboratory heat thermal processing cement, building materials industry etc
2 - Pharmaceutical medicines inspection, preteatment of medical sample
3 - Analytical Chemistry Industry: water analysis and environmental analysis
4 - Laboratory Gemstone, Crystal Growthing Electric Lab Muffle Furnace PARAMETERS
1 Product Name 1200 Degree Vertical Muffle Furnace
2 Model J1220
3 Furnace Door Top open type
4 Display Model Highlight LED display
5 Maximum Temperature 1150℃
6 Working Temperature ≤1100℃
7 Heating rate ≤20℃/min Suggest: 10℃/min
8 Heating zones Single heating zone
9 Hearth dimensions 150mm×150mm×200mm
10 Hearth volume 3L
11 Control mode Intelligent PID auto control
12 Temperature Accuracy ±1℃
13 Temperature curve 30 segments programmable
14 Over heat alarm Have
15 Overcurrent protection Have
16 Thermocouple Failure Protection Have
17 Temperature Sensor K-type thermocouple
18 Heating Element Fe-Cr-Al Alloy doped by Mo
19 Hearth Material high purity alumina fiber
20 After-sales service 12 month warranty, durable maintaince and repair support
21 Power Supply 220V 50HZ
22 Rated power 2.0kw
23 Overall dimensions 500×340×490 (mm )
24 Packing 3-ply wooden case
25 Accessories Plate, Protective Glove, Crucible Tong, Crucible, User Manual.
Company Contact:
- Phone: 860371-55027790
- Address: 136 yard, 10th Avenue,jingkai Area, zhengzhou city, Henan , China
- Email:
- Website: https://www.hnchengyi.com/
Published date: December 16, 2020
- Business Description: Henan Chengyi Equipment Science and Technology Co.,Ltd was founded in 2013 - Our company is a manufacturer and supplier of lab equipment.
Our Equipment range include: Tube Furnace, Muffle Furnace, CVD System,PECVD equipment,Plasma Cleaner,Hydraulic press,Lab grinding polishing equipment, lab ball mill etc.
Our product are widely sold to America, UAE, European, South Africa etc.
With Own R&D team and factory,we not only can supply standard lab equipment, also,we can do customized as request.
We sincerely welcome worldwide friend come to visit us.
