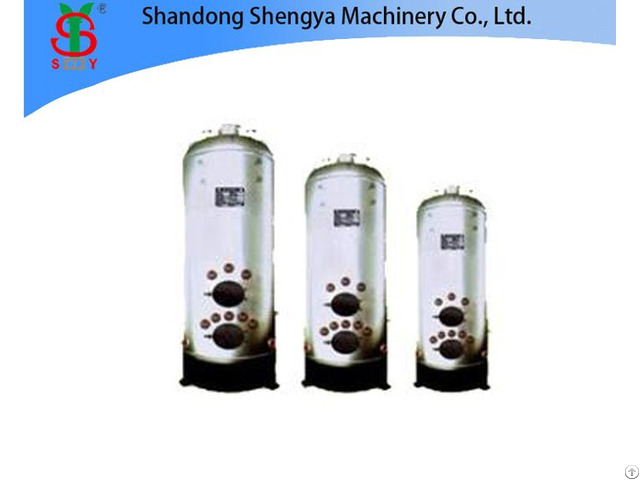

Vertical Coal Fired Steam Boiler - China

Block Making Machine, Interlocking Block Machine, Concrete Pole Machine FactoryVertical coal-fired boiler, A head, drum, top Furnace, Furnace, bending pipe and other components.

1 - Overview of Coal-Fired Steam Boiler

Vertical coal-fired boiler, A head, drum, top Furnace, Furnace, bending pipe and other components.

Vertical bending the structural features of water-tube boilers are: Furnace that has the curved pipe, increasing the radiation heating surface.

However, a larger Furnace water level, lower the oven temperature, therefore, generally suitable for burning high quality coal.

Such as the increase in the furnace refractory bricks, to maintain a high temperature, can also use the low quality coal species.

Better water circulation.

Using double-grate combustion chamber, heating quickly, can burn once again, to achieve full combustion, eliminating smoke, dust removal effect.

Reasonable layout of the boiler structure, good heat transfer.

The boiler design is reasonable, simple structure, convenient operation, easy maintenance, small footprint, low investment and production of steam and heating can be used for enterprises and units.

2 - Performance Characteristics of Coal-Fired Steam Boiler

2.1 the furnace compared with the old vertical boiler, heating area bigger, faster step-heating, less coal consumption, higher thermal efficiency, can save 25-30% of coal.

2.2 a multi-purpose boiler, the furnace production of steam can be used in canteens steaming rice, tableware disinfection, baths heating, steam production, room heating and so on.

2.3 the furnace uses natural ventilation, do not blowers and induced draft fan and no noise.

2.4 compact structure, easy installation, simple operation, easy maintenance, can whole removal, the unit for mobile use.

2.5 baths with steam heating, food, heating, steam rice, etc., work pressure can not exceed the design pressure, does not allow super-pressure operation.

3 - Technical Indexs of Coal-Fired Steam Boiler

Model LSH0.02-0.4-AII LSH0.030-0.4-AII LSH0.05-0.4-AII LSH0.07-0.4-AII LSH0.1-0.4-AII LSH0.2-0.4-AII LSH0.3-0.4-AII LSH0.5-0.4-AII LSH0.75-0.4-AII LSH0.95-0.4-AII

Rated Capacity 0.02 0.03 0.05 0.07 0.1 0.2 0.3 0.5 0.75 0.95

Rated Steam Pressure 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4

Rated Water Temperature 20 20 20 20 20 20 20 20 20 20

Rated Steam Teperature 152 152 152 152 152 152 152 152 152 152

Heating Area 1.28 1.5 2.1 2.85 4.3 9.4 12.5 20 25 32

Design Effiency 68 68 68 68 68 68 68 68 68 68

Coal Available Type II Gas Coal

Combustion Way Hand Grate Hand Grate Hand Grate Hand Grate Fixed Gate Fixed Gate Fixed Gate Fixed Gate Fixed Gate Fixed Gate

External Dimension 516*1605 616*1685 616*1870 716*1950 816*2630 1016*3042 1116*3286 1320*3800 1524*4300 1624*4565
