Vegetable oil refinery machine with vacuum tank

Product Description

Intruduction:

The Refined Oil Machine Price is reasonable.

It is displayed by the instrument panel and easy to operate safety.

The oil refinery machine LYX3-Ⅱ is made of 304 stainless steel, the temperature of the oil product can be controlled artificially, it is displayed by the instrument panel and easy to operate safety, oil refinery machine can realize the dephosphorization, dialkalization, and dewatering during the oil production.

Factory direct sales, complete model, can be customized.

The oil refinery machine price is friendly to factories and individual.

The crude oil get from physical squeeze or other methods is mixed with suspended particles, water, phospholipids, proteins, free fatty acids, organic or inorganic impurities, which affect the edible value and storage security of the edible oil.

The purpose of oil refining is to remove the useless harmful impurity of the oil for eating, storage and industrial producing.

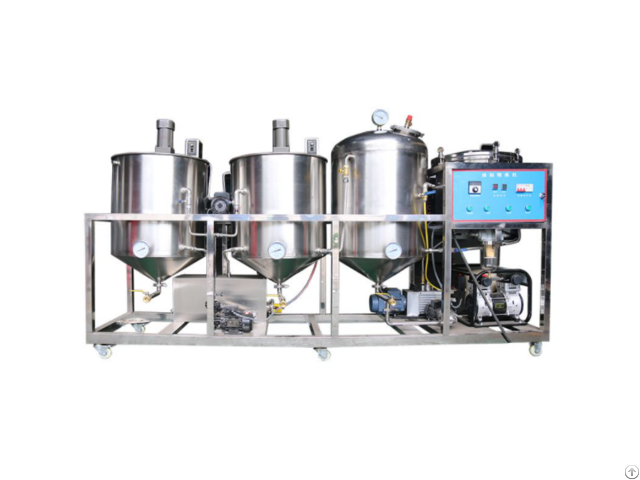

Tank LYX3-Ⅱ oil refinery machine is made up by refining tank, vacuum dewatering tank, decolorization tank, vacuum pump, oil pump, alkali tank, measuring tank, and electrical control cabinet, equipped with automatic temperature control device, vacuum dehydration, heat insulation device and feeding buffer device, can be realized on the crude

The common refining process includes Degumming, Neutralizing, Bleaching, Deodorizing and sometimes dewaxing (Mainly removing free fatty acid and other minor constituents).

The process is suitable for refining soybean oil, rapeseed oil, sunflower oil, palm oil and etc.

Qifeng Brand oil refinery technology is the result of years of research into and innovation of traditional mainstream refinery techniques covering purification, degumming, dewatering, deacidification, bleaching, dewaxing, deodorization and so on.

Its most important feature is its high flexibility enabling it to cater to any special requirements of the user for the final products in relation to flavor and physical-chemical properties.

With first-class manufacturing facilities, comprehensive quality standards, and fully automatic computer control system, Qifeng provides high-class tech.

Oil Refinery Progress

1 - Degumming

The purpose of degumming is to remove impurities such as phospholipids, gums, proteins and etc.

There are several methods as follows: water degumming, acid degumming, special degumming and etc.

2 - Neutralizing

The purpose of neutralizing is to remove free fatty acid in edible oil by using caustic soda while removing impurities such as phospholipid, pigments, metal ions and peroxide under the adsorption of soap stock.

3 - Bleaching

Bleaching is the process which removes coloured matters by mixing bleaching earth with edible oil under controlled conditions of temperature.

After proper mixing with bleaching earth for a specific residence time, the mixture is finally pumped into leaf filters with stainless steel mesh elements followed by polishing filtration.

4 - Deodorizing

Deodorizing is the final stage in edible oil refining in order to remove odoriferous material, free fatty acids and other undesired minor components by steam distillation under conditions of high temperature and vacuum to produce a bland oil with a good shelf life.

5 - Dewaxing

Through automatic control system, combined with crystallization curve (time-amount of crystallinity) of different oil, crystals in oil grow and finally can be separated by filtration to obtain dewaxed oil.
