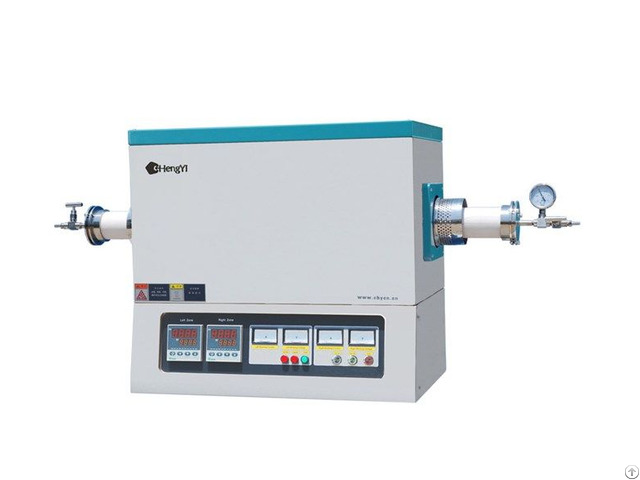

CHY-T1580B Laboratory High Temperature Dual Zone Tube Furnace High Temperature Tube Furnace Vacuum Tube Furnace Distributor 1 - O.

D80*1000 high purity Corundum Tube

2 - High quality ceramic fiber chamber

3 - PID Programmable controller

4 - Heavy duty double layer structure

5 - Made by Henan Chengyi CHENGYI Tube Furnace APPLICATION

1 - Laboratory heat thermal processing

2 - High Vacuum Sintering Heating Annealing Brazing

3 - Laboratory Thin Film Preparation, Nano tube growthing

4 - Laboratory CVD system, graphene growthing, preparation.

lab Tube Furnace PARAMETERS

Product Name 1500 Degree Tube Furnace

Model T1580B

Furnace Door Open Type Furnace

Display Model Highlight LED display

Maximum Temperature 1350℃

Working Temperature ≤1300℃

Heating rate ≤20℃/min Suggest: 10℃/min

Heating zones two heating zone

Quartz Tube Diameter O.

D80*1000mm

Inner Diameter I.

D70*1000mm

Heating Zone Length 230+230mm

Constant Heating Zone 180+180mm

Control mode Intelligent PID auto control

Temperature Accuracy ±1℃

Temperature curve 30 segments programmable

Over heat alarm Have

Overcurrent protection Have

Thermocouple Failure Protection Have

Temperature Sensor S-type thermocouple

Heating Element SiC Rod

Quartz Tube Material High Purity Corundum Tube

After-sales service 12 month warranty, durable maintaince and repair support

Power Supply 220V 50HZ

Rated power 5.0kw

Overall dimensions 800×540×750 (mm )

Packing 3-ply wooden case

Accessories Protective Glove, Crucible Tong, Crucible, Corundum Tube, Vacuum Flange, User Manual.
