Uv Visible Spectrophotometer T 3 - China

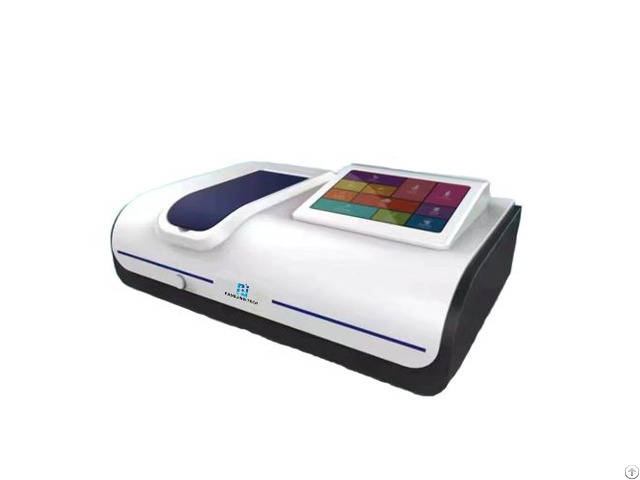

Model Name: UV-Visible Spectrophotometer

Model No: T-3 Product Introduction

• Model T-3 successfully realizes the strict requirements of high precision and high reliability measurement.

It meets the requirements of various applications, which is wildly used in the fields of biological research, biological industry, drug analysis, pharmaceutical, teaching research, environmental protection, food hygiene, clinical testing, health and epidemic prevention etc.

• The latest microcomputer technology and electronic control system is used, optimizing the design from traditional optical path structure, so that the accuracy, stability and durability of the instrument are guaranteed.

• Automatically diagnosis function and automatically calibration and recovery function, to ensure the stable operation of the instrument and the accuracy of the test data.

• Imported components are used, all the optical mirror surface is coated with SiO2 protective film, coupled with the fully sealed monochromator structure, so that the instrument analysis is more accurate, to ensure the stability and service life of the instrument.

• Socket-type tungsten lamp, without optical commissioning, making the instrument debugging, maintenance more simple and convenient.

Technical Specifications

Technical Specs T-3

Beam Structures C-T Type (Proportional Dual Beams)

Wavelength 190nm to 1100nm

Spectral Bandwidth 2±0.4nm

Wavelength Accuracy ±0.3nm

Wavelength Repeatability ≤0.2nm

Transmittance Accuracy ±0.3% τ

Transmittance Repeatability 0.2% τ

Stray Light ≤0.04%τ (220nm NaI, 340nm NaN02)

Stability 0.001A/h (500nm)

Test Mode Transmittance, Absorbance, Concentration, Energy

Wavelength Adjustment Automatic

Absorbance Range -4A to 4A

Display 7" Multi-color LCD touch screen

Detector Silicon Photodiode

Light Source Tungsten Lamp

Power Supply AC 220V/50Hz, 110V/60Hz

Power 120W

Exterior Dimensions (W×D×H) 480x350x220mm

Net Weight 20 KG

Equipped with PC Control System (Optional) Features

LCD screen with English language interface.

Large storage capacity which up to 1, 000 standard curve graphs and experiments data.

Data can be downloaded and transfer through USB disk.

Connectable to USB port printer to get the editable report.

Rich measurement methods, with wavelength scanning, time scanning, multi-wavelength measurement, multi-derivative measurement (optional), dual wavelengths, triple wavelengths (optional), DNA protein measurement (optional) and other measurement methods, can meet the measurement requirements of different customers.

The instrument optional to be equipped with single hole frame, manual four frame, manual eight frame, automatic eight frame, glass frame, 1cm color frame, 5cm color frame, 10cm color frame etc.

The instrument can be connected and controlled through PC software to achieve spectrum scanning, time scanning and other more accurate and flexible measurement requirements.

Certificates

Certificated with CE, ISO9001: 2008
