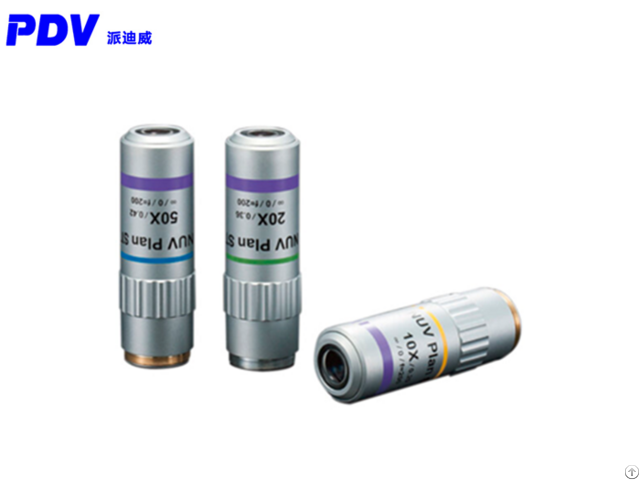

Uv Objective - China
price: check with company for price
Specification:
Product parameter: Model magnification Resolution (μm) Numerical aperture (N.
A) Focus distance (mm) Working distance (W.
D) (mm) Focal depth ±D.
F (μm) Pupil diameter (mm) Field of view (1/2 "type)(mm) Net weight (G)
PF-20-UV-AG-LC07-A 20X 2.1 0.36 10 15.15 2.1 1.2 0.24×1.32 350
PF-20-UV-AG-LC11-A 20X 2.1 0.36 10 15.2 2.1 1.2 0.24×1.32 350
PF-50-UV-AG-LC07-A 50X 1.6 0.42 4 11.99 1.6 0.48 0.10×0.13 400
PF-50-UV-AG-LC11-A 50X 1.6 0.42 4 12.02 1.6 0.48 0.10×0.13 400
PF-80-UV-AG-LC07 80X 0.9 0.55 2.5 9.78 0.9 0.3 0.06×0.08 350
PF-80-UV-AG-LC11 80X 0.9 0.55 2.5 9.65 0.9 0.3 0.06×0.08 350
Company Contact:
- Posted By: Beijing PDV Instrument Co., Ltd
- Phone: 18060335777
- Address: Zhichun Road, Haidian District, beijing , 北京 , China
- Email:
- Website: https://www.pdvcn.com/
Published date: September 11, 2024
- Business Description: Beijing PDV Instrument Co., Ltd is a collection of optics, precision machinery, automatic control technology independent high-tech research and development enterprises.
Since 2005, we have been serving the scientific research institutes and universities.
We have developed the hardware and software system (optical path construction, software development, mechanical circuit design, etc.
) according to the needs of customers.
Through long-term unremitting efforts, the process of building the system to control the optical path and excellent service to customers, we’ve grown into a well-known manufacturer among scientific research, colleges and universities, machinery automation and many other areas.
Our Products:
- Electric Wedge Lifting Platform Motorized Lab Jacks Table
- Pt Gd140g Precise Electric Translating Platform
- Z Axis Single Shear Fast Lifting Platform Pt Bz31 Bz50 Bz50a Bz70
- Electric 3d Station Xyz Mini Travel 20mm
- Pt 01pg Precision Optical Table Vibration Isolation Platform Cellular
