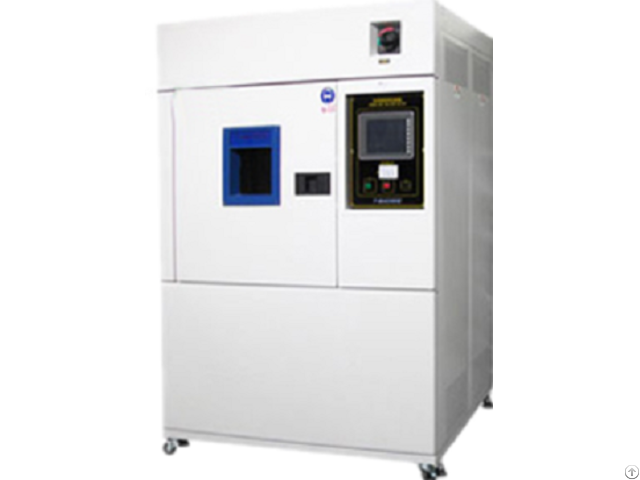

Uv Carbon Arc Weather Meter - China

Introduction：

Weatherproof test: This test is conducted to find out the impacts on some items and parts in a natural condition by such factors as sunbeam, ozone, rain, snow, temperature and humidity.

It will also find out the resistance of the aforesaid items to the aging effects imposed on them by the elements.

The changes of properties of the items under test such as deformation, discoloration, rate of penetration, gloss, peeling, hardness and softness maybe found out easily in a short time.

With the result of the test, the quality requirement may be improved.

This test device may be used in many fields such as aviation, coating industry, automobile industry, textile industry, dyestuff industry, plastic industry and construction companies.

Feature：

1 - Glass carbon dust suction device.

2 - The voltage automatically detect the secondary.

3 - Servo current adjustment device.

4 - Odor automatic discharge device.

5 - Spray humidification devices and ultrasound assisted humidification.

6 - Specimen condensation promoting way, can improve the reproducibility of the test piece 10 times.

7 - High life carbide.

8 - Borosilicate glass windows and light simulation.

MODLE

ITEM TMJ-9705 LIGHTING SOURCE ENCLOSED CARBON ARC INSIDE DIMENSION 1000x1000x900(WxDxH) mm OUTSIDE DIMENSION 1300x2000x1300(WxDxH) mm WEIGHT 400KG TESTING TIME 24Hr/48Hr* TEST VOLTAGE 120V to 145V (135V) 135V±2% TEST CURRENT 15A to 17A (16A) 16A±2% BLACK PANEL TEMPERATURE CONSTANTLY 60oC or 83±3oC AUTOMATICALLY SPECIMEN DRUM DIA.

800mm DRUM ROTATION SPEED 1RPM TEST SPECIMEN No.

60 PCS (2 STAGE) SIZE 150 x70mm(WxD) TEMPERATURE RANGE RT+10oC ~85oC HUMIDITY RANGE DRY at 40oC, 40% to 85% RH

DRY at 80oC, 30% to 50% RH CARBON TYPE UPPER 13Фx305mm( 1 UNIT ) 23Фx106mm( 1 UNIT ) 48H LOWER 13Фx100mm( 2 UNIT ) 18Фx105mm( 1 UNIT ) 48H POWER SOURCE 220V/380V SINGLE PHASE 11KVA
