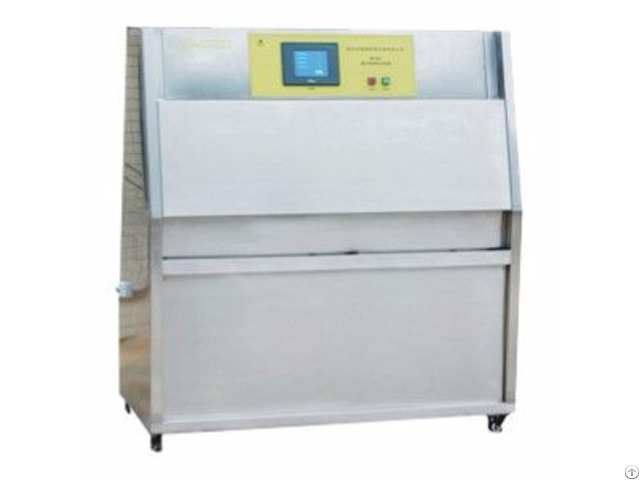

Ultraviolet Light Accelerated Weathering Tester - China

Standard：

ASTM D4329, ASTM D4587, ASTM D4799 , ASTM D5208, ASTM G151, ASTM G154 , EN 927-6, EN 1297 , EN 1898 FIBC, EN 12224 , EN 13523-10 , ISO 4892-1, ISO 4892-3, ISO 11507, ISO 11895 , ISO 11997-2 , SAE J2020, EN 1062-4 Product Advantages：

UV aging chamber innovative design, compared with other UV fluorescent aging test chamber, to achieve the high performance with ease of use, accuracy and safety of a higher standard, the verification performance in line with or even more than other brands.

Multi-language touch screen interface, through the Ethernet connection for data collection, high security, optional recirculation spray device.

More other unique user easy to operate using the features Technical Parameters：

1 - The radiation uniformity: covering the entire surface of the sample 4%

2 - Irradiation: Minimum: 0.35 W / m2 (UVA, UVB) Maximum: 1.55 W / m2 (UVA), 1.23 W / m2 (UVB)

3 - Blackboard Temperature Range: UV Stage - BPT 35-80 ° C (95-176 ° F) Condensing Stage - BPT 35-60 ° C (95-140 ° F)

4 - Sample capacity: 48 + BPT on 24 sample clamps

5 - Weight: About 140KG (310LB), depending on the choice of accessories

6 - Power: 120VAC (± 10%), 1Ph.

2Wire (1 / N / PE), 50/60 Hz, 12A230 VAC 2 / PE), 50/60 Hz, 8A

7, spray water pressure: 25-40 psi (1.7-2.7bar), purity: <1 ppm dissolved solids, silicon: <0.1 ppm, conductivity: <5 us / cm or 200 KΩ or reference test method

8, condensate water requirements

Pressure: 2-60 psi (0.1-4.1 bra)

Purity: Recommended deionized water, but not required.

Technical Parameters ◆ Inner box size: D450 ×W1165×H500 mm

◆ Outline dimension: D500×W1300×H1400 mm

◆ Liner material: SUS304# stainless steel plate

◆ Shell material: SUS304 # senior stainless steel plate

◆ Test piece fixture material: SUS304 stainless steel plate

◆ Imported lamp: Two rows of eight pieces, 40W / pieces

◆ Water and consumption: Clean water or distilled water 8 liters / day

◆ Control system: Color touch screen, real-time display irradiation, condensation, radiation intensity, lamp life tired.

Chinese input mode, the whole automatic operation.
