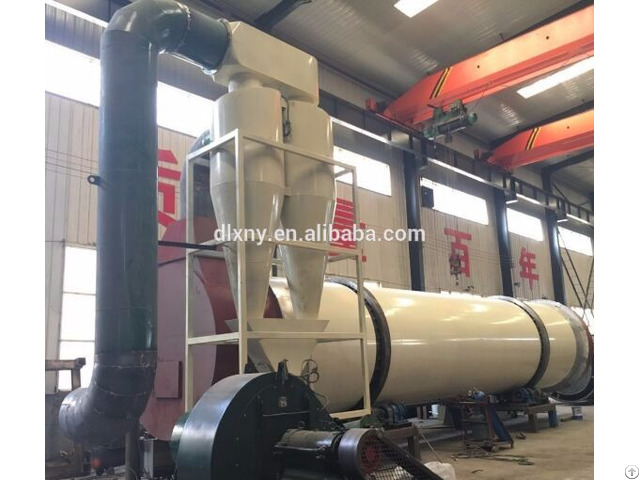

Three Silica Sand Rotary Industrial Drying Equipment - China

Dingli Silica Sand Rotary Dry Machine Introduction:

Product Name: Silica Sand Rotary Dry Machine

Producer: Zhengzhou Dingli New Energy Technology Co., Ltd Type: Three Cylinder

Dryer Material: Alloy Steel Plate

Drum diameter (m): 2.0

Voltage(v): 380

Total power(kw): 5.5KW

Capacity(t/h): 4-5

Early moisture(%) : 15%

Final moisture(%) : below 0.5-1%

Dryer service life: Over 10 years

Suitable materials: Drying non-sticky, good fluidity material, such as sand, coal ash, pulverized coal, mineral, slag.

Drying material size(mm): below 20-40mm block material, aggregates, powder materials

Application: Cement plant, slag powder and dry-mixed mortar production line.

Weight(ton): According to capacity customized

Matching Parts: cylinder device, transmission device, overall stand, rolling support, Sealing device, discharge end, Closed air discharge device

Dingli Silica Sand Rotary Dry Machine Features:

1 - Sand dryer is made of alloy steel plate, wear-resisting is 3-4 times than ordinary steel, and equipment service life is more than 10 years.

2 - The initial moisture content of materials is 15%, the final moisture ensures below 0.5-1%, which is the preferred products for cement plant, slag powder and dry-mixed mortar production line.

3 - Sand dryer thermal efficiency is up to 80%, while the total power is low, power saving 40%, energy-saving effect is obvious.

4 - Fuel can be used coal, oil, gas, can dry below 20-40mm block material, aggregates, powder materials.

5 - Compared with single-tube dryer, three drum sand dryer can reduce about 40% area, construction investment reduce about 50%.

6 - No air leakage phenomenon, completely solve the sealing difficulties, modular units, easy installation.

7 - The discharging material temperature <50 degrees, can be directly into the library without cooling.
