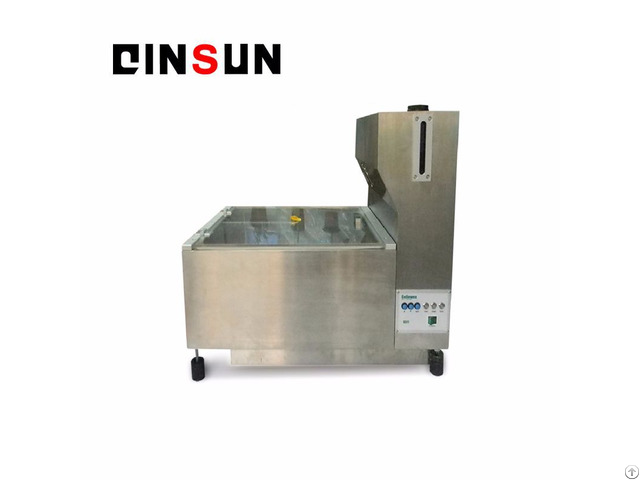

Thermal And Moisture Resistance Test Insruments - China

Measurement of thermal resistance and water vapor resistance under steady state conditions of a range of products of fabrics, films, coatings, foams, and leathers, including multi-layer assemblies, for use in clothing systems.

.

The Thermal resistance wet resistance tester simulates the heat and mass transfer processes which occur next to human skin.

Specifications:

Thermal Resistance(RCT) range: 0.002~2.000m2·K/W; Indication error ≤ ±2%; Repeatability error ≤ ±2%; Resolution: 0.001m2·K/W; Evaporative Resistance(RET) range: 0-1000m2·Pa/W; Indication error ≤ ±2%; Repeatability error ≤ ±2%; Resolution: 0.001m2·Pa/W; Test plate temperature range: 20℃-50℃, adjustable; Temperature control accuracy: ±0.03℃; Temperature measurement: ±0.01℃; Air velocity: 0~1.2m/s, continuously adjustable; Air velocity accuracy: ±1%; The sample platform lift range: 0~70mm, automatic lift; Sample thickness: 0~70mm; Test plate area: 250mm×250mm; Guard ring size: 512mm×512mm, Guard ring width: 127mm;

Dimensions: 770×560×750mm (L×W×H) (not including Climate Chamber); Weight: 30Kg (not including Climate Chamber); Host power: AC220V±10%, 100W or AC110V±10%, 100W.

Company Contact:

• Posted By: Qinsun Instruments Co., Ltd

• Phone: +862167800179

• Address: No.258 Banting Road, Songjiang District Gu Dai Road, Shanghai, SHANGHIA , Shanghai , China

• Email:

• Website: https://www.qinsun-lab.com

• Business Description: Qinsun Instruments Co., Ltd was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.

  Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.

  Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.

  Our Products:

  - multi finger scratch tester

  - electronic crockmeter rubbing fastness tester

  - double cylinder launder ometer

  - color fastness tester of textiles to perspiration

  - scorch sublimation tester for color fastness to heat
