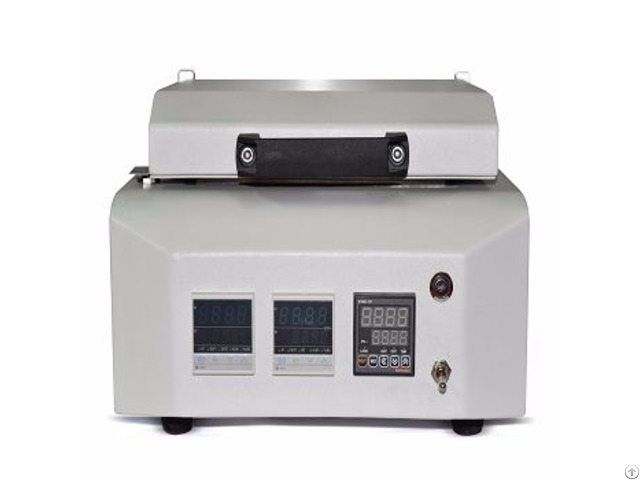

Textile Fabric Ironing Sublimation Color Fastness Tester - China

Sublimation fastness tester (large) is used to determine the hot pressing ironing and dry heat (sublimation) color fastness properties for all kinds of dyed printing material and fabrics, it also can be used for determination the resistance to chlorine damage, textile bleaching products, scorch yellowing test, disperse dye sublimation fastness test, dye fastness test, high temperature dimensional stability.

It is commonly used in printing and dyeing fabrics, textile auxiliaries clothing industry.

Standard

GB/T 5718, GB/T 6152, JIS L0879, JIS L0850, ISO 105 P01, ISO 105 X11, AATCC 117, AATCC 133, AATCC 92(G247), AATCC 114(G247), M&S C13(G247B), M&S C10(G247B) Features

★ Single work station easy for operation, high cost performance, Multi work station type can raise the efficiency and also meet M&S standard.

★ Upper and lower heat board control temperature separately, accurate temperature control, timing alert, control testing time exactly.

★ Heating board distance is adjustable, suitable for specimen of different thickness, High efficient insulation material ensures the safety operation.

Technical Parameters

Model G247 G247B

Heating board area 100mm╳40mm 210mm×210mm

Heating board material Aluminum plate Aluminum plate

Heating time Custom Custom

Pressure 4kPa±1 kPa 4kPa±1 kPa(Full area)

Temperature control Upper and lower heating

independently Upper and lower heating

independently

Temperature heating range Room temp-300℃ Room temp-300℃

Temperature control stability ±1℃ ±1℃

Temperature uniformity ±1℃ ±1℃

Timer Preset, Auto timing when upper board press down.

Preset, Auto timing when upper board press down.

Alarm Buzz Buzz

Test Application Hot press, dry heat, chlorine damage Hot press, dry heat, dimension stability

Power 220V, 50Hz 220V, 50Hz

Size W250mm×D300mm×H230mm W345mm×D520mm×H320mm


Weight 9kg 12kg
