Telaire 7001 Co2 Sensor - China

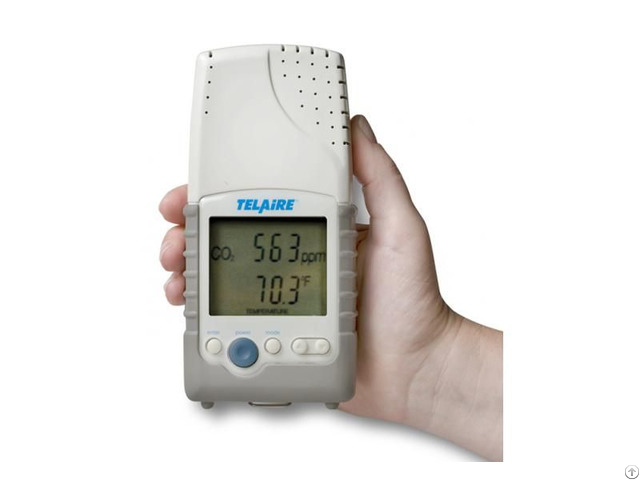

The Telaire 7001 handheld carbon dioxide sensor features patented Absorption Infrared technology.

Each sensor measures CO2 and temperature and can calculate and display real-time ventilation rates.

When combined with the HOBO U12 or ZW Series it can record CO2, and when connected to an analog input on a H22, RX3000, or U30 Series it can record temperature and CO2 - The Telaire comes with an adapter but also operates up to 70 hours on 4 AA batteries (not included).

Measurement Range When using the CABLE-CO2 and a U12 or ZW: 0 to 2500 ppm

When using the CABLE-2070 and a H22 or U30: 0 to 4000 ppm Telaire 7001 operating range: 32°F to 122°F (0°C to 50°C), 0 to 95% RH, non-condensing

Display resolution: ±1 ppm

Accuracy: ±50 ppm or 5% of reading, whichever is greater

Repeatability: ±20 ppm

Temperature dependence: ±0.1% of reading per °C or ±2 ppm per °C, whichever is greater, referenced at 25°C.

Pressure dependence: 0.13% of reading per mmHg (corrected via user input for elevation)

Response time: <60 seconds for 90% of step change

Warm-up time: <60 seconds at 72°F (22°C)

Calibration interval: 12 months Full factory calibration available by contacting GE Measurement & Control Solutions.

Battery type: Four AA batteries (not included)

Battery operation: 80 hours (alkaline) External power supply specifications

AC/DC adapter (included)

Output: 6 VDC, 500mA output.

Power connector: Round barrel with 2.5mm ID, 5.5mm OD, 12mm long, center positive (+6 VDC), outer shell ground.
