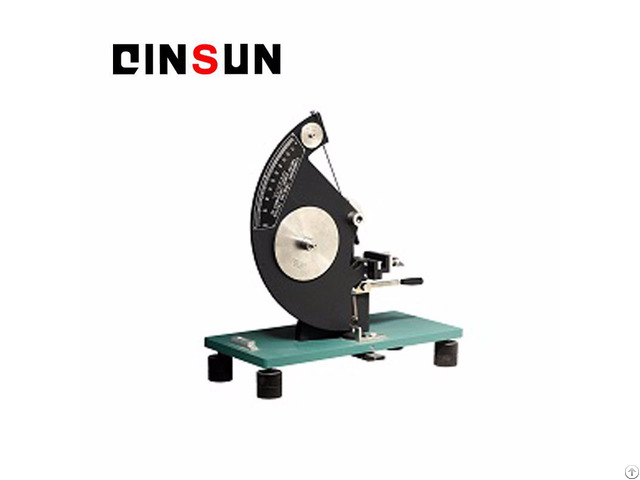

Tearing Strength Tester For Testing The Films - China
price: 1.00 Dollar US$
Tearing strength tester is used to determinate the tearing resistance of property of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textile and non-woven etc.
The weight is configurable for any needed force value, precise, easy operation, easy to carry.
Specification:
Weight group A: 0N-64N
Weight group B: 64N-128N
Resolution: 1cN Principle:
The principle is to put the weight on the testing clamp, then turn on the tester, with the sector plate swing, the weight rise.
Test the highest height; calculate the increased potential energy, compare the standard tearing length with the value on the indicator, calculate the error.
Technical parameter:
A, mechanical, pointer display B, test range: 200, 400, 800, 1600, 3200 & 6400gms (optional counterweight) C, accuracy: ± 0.2% D, increase the weight capacity can quickly change test E, pendulum reduction - Manual F, sample holder: optional manual or pneumatic G, counterweight and optional calibration weights H, Dimensions: 483MM * 398MM * 578MM I, Weight: 15.2KG
