Taber Rotary Platform Abraser Abrader - China

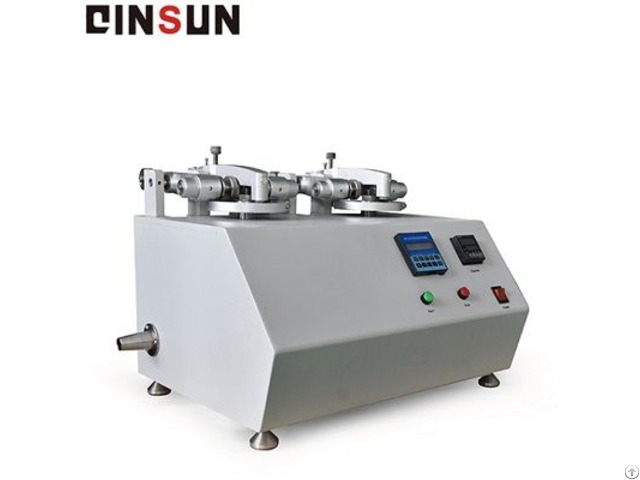

​The Taber Rotary Platform Abraser (Abrader) is used to perform accelerated wear testing.

Samples are mounted on a rotating turntable, and subjected to the wearing action of two abrasive wheels applied at a specific pressure.

Features include two turntables; quick release wheel mounting; precision vacuum height adjustment; and 60 & 72 RPM speeds.

Includes: CS-10 Calibrase wheel set (2 pr.

); H-18 Calibrade wheel set (2 pr.

); S-11 refacing discs (1 pkg.

); S-36 specimen mounting card sample pack (10 pcs.

); E100-125 specimen holder (2 each); E100-101 hold down ring (2 each); auxiliary weight set (4 each to achieve 500g and 1000g load); hex wrench; S-12 hand brush; and vacuum system.

115/230V, 60/50Hz switchable.

Mainly used for the wear tests of suitcases, carpets, cardboard, clothing, glass, plastic coating, tiles, metal coating, paint, varnish, decorative flakes, high pressure sheet, plastic, textiles, flexible floor mats, traffic paint, anodized, electronic components, decorative panels, wax, labels, leather, dental materials, automotive interior ornaments, resins, furniture and so on.

Standards

1 - DIN 53754 Testing of plastics; determination of abrasion, abrasive disk method

2 - DIN 53109 Testing of paper and board; determination of abrasion by the abrasion wheel method

3 - DIN 52347 Testing of glass and plastics; abrasion test; method using abrasion wheels and measurement of scattered light

4 - TAPPI T476 Abrasion loss of paper and paperboard (Taber-type method)

5 - ASTM D1044 Standard Test Method for Resistance of Transparent Plastics to Surface Abrasion

6 - ASTM D3884 Standard guide for abrasion resistance of textile fabrics (Rotary platform, double-head method)

7 - ISO-5470 Rubber- or plastics-coated fabrics - Determination of abrasion resistance

Technical Parameters

Items Parameters

Rotation speed 30-75r/min adjustable(digital display)

Diameter of sample surface 100mm

Diameter of test platform 113mm

Set range of cylinder number 1-999999

Pressure of empty arm 250g

Weights(according to customers) 250g, 500g, 750g, 1000g

Pressure range of double wheels 125g, 250g, 500g, 750g, 1000g, 1250g, et al.

Height of vacuum arm Adjustable

Power 220V, 50Hz

Dimension 220mm×380mm×300mm

Weight 20kg
