T Run Dental Vacuum Porcelain Furnace - China

T-Bright Dental sintering furnace, the electric lifting platform is used to accurately and quickly place the crucible in the furnace.

4 pcs MoSi2 is heated in a ring shape and the material is heated more evenly.

Especially for zirconia dentures, the dentures that fired are more transparent and beautiful.

Product Description

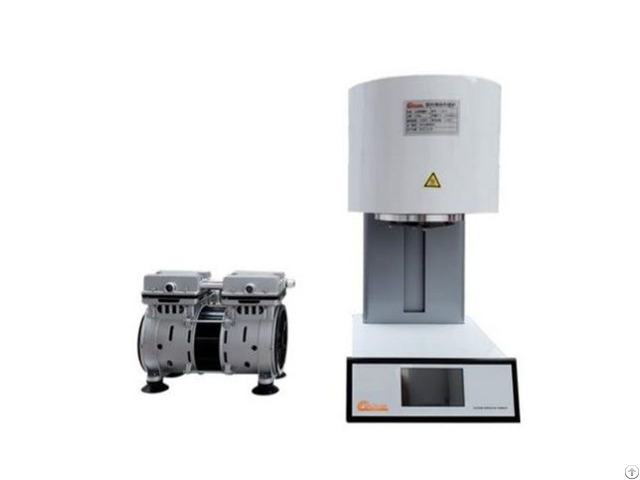

T-Run dental vacuum porcelain furnace with a vacuum pump

T-Run vacuum porcelain furnace applies auto lift and down the tray with non-oil vacuum pump design.

It adopts high quality quartz tube as chamber and quality A1 resistance wire as heating element, make sure good uniformity of heating and good porcelain effect.

It is suitable for all kinds of ceramic powder materials, such as Vita In-Ceramics, Shanghai Jade Crowns, etc.

Dental Vacuum Porcelain Furnace Features

1 - Max temperature: 1200℃

2 - Working temperature: 1100℃

3 - Automatic program for heating, platform moving.

4 - Touch screen LED panel which has been stored 100pcs porcelain programs

5 - Quality A1 wire protected by a quartz tube, avoids the porcelain clung on the wire after a long time using.

6 - This Dental Vacuum Porcelain Furnace is suitable for all kinds of porcelain cement (VITA In-Ceram®, etc).

7 - Super anti-power jamming capabilities, can bear instantly to 94V-264V.

8 - The high accuracy temperature controller can achieve +/-1℃.

When 920℃ heat preservation.

9 - The temperature has no obvious overshoot phenomenon.

10 - Night heat preservation function, Power loss only 10W/H.

11 - Simple operation, low noise, suitable for various factories, clinics, and hospital.

Dental Vacuum Porcelain Furnace Specification

Furnace construction ● BR-1430 type high purity Japanese Imported ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace)

● Vacuum line multi-layer filter structure design, guarantee the Dental Vacuum Porcelain Furnace stability and longevity of the related components.

Control type LED touch screen control panel

Chamber Size Dia100xH80mm

Power 1.6 KW

Voltage AC 220V 50/60 Hz single phase (or according to your standard)

Max.

Temperature 1200℃ (< 2 hours)

Continuous work temp.

0-1000℃ (can be good keeping warm at 920deg.

c)

Max.

Heating Rate 0-150℃ /min

Vacuum -97KPa with oilless vacuum pump

Temperature controller For this dental vacuum porcelain furnace, touch screen panel which has been stored 100pcs porcelain programs

Temperature Accuracy +/- 1℃

Heating Element Kanthal A1 wire protected by quartz tube, avoid the porcelain clinged on the wire after long time using.

Thermal Couple K type

Night heat preservation function Can be keeping warm at 300deg.

c at night, the power loss

Only 10W/H

Furnace Warranty 1 year limited warranty (Consumable parts such as thermocouple, and heating elements are not covered by the warranty, please order the replacements at related products below.

) This electric furnace is applicable for melting, heating and holding of steel, copper, inron, aluminum, zinc, tin, nickel and toher ferrous of nonferrous metal.

This electric furnace can also be used for forging, sintering and tube-bending forming in casting and melting industrials.
