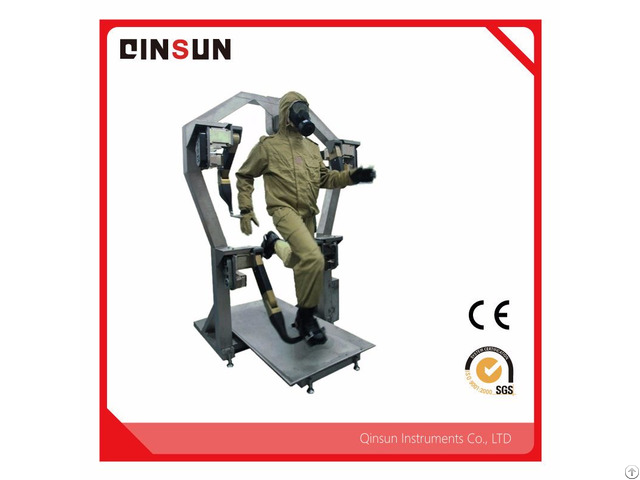

Sweating Thermal Manikin - China

Introduction The sweating thermal manikin test system simulates the physical mechanism and heat exchange from the outside world.

Obtain the thermal resistance, wet resistance and clo value of the material by the manikin monitoring results, and the influence of different clothing on the thermal comfort manikin is obtained by analyzing the software data.

Thermal manikin test system can characterize the impact of different clothing on human comfort performance by measuring the heat balance and the results of human comfort between heat generation of dressed manikin and the external environment.

Then, guide the fabric and clothing development for the special using conditions of the comfort.

Features 1 - Surface black treatment, perfectly simulate human skin with the same radiation.

2 - Insulation capacity between the independent heating section achieves isothermal heating.

It also achieve the human body temperature difference for the special test requirements.

Temperature difference in the adjacent two sections up to 2 ℃.

Maximum degree simulate the different parts of the body temperature difference.

3 - Neck cable make clothing easy to wear off, without prejudice to wearing head protection devices, such as hats, masks, etc.

4 - The manikin can stand, sit, walk and run.

A variety of action modes meet different test and practical needs.

5 - Controlled sweating system control sweating speed precisely, "sweat" preheat system minimizes the effect of temperature difference on test results.

6 - Segmental sweating control system achieves different parts of sweat rates for the real simulation.

7 - Constant temperature test, variable temperature test, constant power test, variable power test.

4 kinds of work modes.

8 - ThermoTech control analysis software, real-time monitoring test situation, real-time display test results, provide data analysis, data storage and print output and other functions.

Technical Parameters

Items Parameters

Material Antirust copper alloy material

Heating section 32 section (other quantities need to be customized)

Temperature detection section 32 section (other quantities need to be customized)

Temperature range Indoor temperature-55℃

Temperature control accuracy ±0.1℃

Temperature stability ±0.1℃

Heating output power 800-1000W

Power accuracy ≤1%

Height of manikin 175cm(other height need to be customized)

Weight of manikin ≤65kg

Heating component Hot plate heat

Environment temperature monitor 4 section

Environment humidity monitor 2 section

Work modes Constant temperature test, variable temperature test, constant power test, variable power test

Sweating system Controlled, sweat preheating system

Walking speed 0-100m/min

Running speed ≤250m/min

Step 0-100cm/step

Safety protection function Anti-leakage safety protection device, overrun alarm, overheating automatic power off function

Test index Thermal resistance results, Clo value and so on

Test software ThermaoTech Control analysis software

Comfort evaluation module Thermal comfort evaluation model and EQT evaluation model

Power 220V, 50Hz

Dimension 1200 mm(W)×1200mm(L)×2200mm (H)

Weight 475kg Configuration Item No Details

5300201 Thomas sweating thermal

5300202 Walking module

5300203 Thermal comfort analysis module

5300204 Walk-in constant temperature and humidity box

5300205 Pure water machine

5300206 Lenovo brand desktop computer, 1 set
