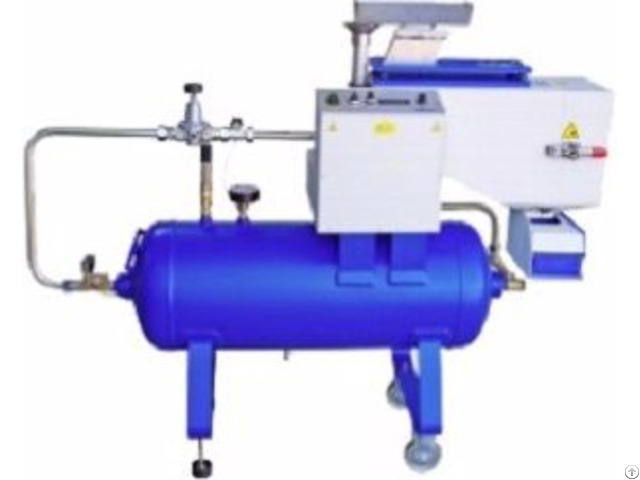

Stone Hammer Blow Testing Instrument - China

Work Principles A certain weight of gravel is bounced into the feeder by vibration.

Due to the vacuum formed by the high speed air flow in the lower part of the feeder, the collision medium is sucked into the ejection gun assembly, and then is shot into the test sample by the jet stream.

After the medium hit the test target, the medium falls into the gravel collecting box.

The test machine causes a large number of steel balls or rubble with sharp edges to hit the sample surface in a short time.

The whole experiment is carried out under a controlled temperature.

After the impact is finished, the loose coating is removed with adhesive tape to reveal the residual stone strike marks on the sample, which can be used to judge the performance of the resistance to stone impact by analyzing the damage degree of the sample.

Standards SAE J400, VDA 621427, ISO 20567-1, ASTM D3170, GMW14668-3.4.9, Peugeot/Citroen D241312, Chrysler 463PB-52-01 , Chrysler 463PB-39-01, Mazda MES MN 601C, Toyota, Nissan, Ford BI 157-04, Ford BI 157-05 - The new gravel impact tester is assembled by standard component and equipped with easy handling accessories, achieving gravel impact against all the main standard automotive materials on this one machine.

It is the only instrument in China that adopts the universal adjustment device, and the 0-180 impact angle can be adjusted arbitrarily.

( the so-called mufti-functional instruments produced by other manufacturers is actually equipped with different angel collision boxes ).

The first disadvantage is that customers need constantly change collision boxes with different angles.

It has a lot of trouble to make replacement and the collision boxes of different angles will cover a large area.

The second disadvantage is that the collision boxes are not complete enough with different angles to meet customers need for subsequently adding the required impact angles.

Technical indicators:

EMC immunity: EN 50082-2 (1995)

EMC radioactivity: meets EN 55011 (1997) level requirements

air:

Gas consumption: up to 80psi, flow rate of 100 cubic feet per minute of gas 5-10 seconds (VDA standard requires less)

Compressed air: 80psi pressure, flow rate of 100 cubic feet per minute

Compressed air pipe diameter: SAE test: 3/4 inch (19mm) or greater

VDA test: 1/2 inch or greater

Air tank volume: 30 gallons

Operating temperature: -30 ℃ --- 40 ℃

Maximum relative humidity: humidity of 31 ℃ when the humidity of 80%, when the temperature reaches 40 ℃ when the humidity line reduced to 50%

Pollution control: Level 2 of environmental protection

Sound pressure rating: about 130dBA

Altitude: 2000m

Continuous operation: for continuous operation

Shot barrel diameter:

SAE J400: 2.07 in.

(52.6mm)

VDA: 11.42 inches (290mm)

Flat Inspection Sample Size:

4X6 inch (101.6 x152.4mm)

4X8 inch (101.6 x203.2mm)

4X12 inch (101.6 x304.8mm)

Thickness up to 7/16 inch (11.11mm)

It is also possible to accept a sample with a maximum width of 4.125 inches (104.8 mm) Optional accessories:

In order to meet the diverse requirements of customers, special configuration of a variety of accessories:

1 - Pneumatic fixture (only 90 degree impact)

2 - Impact angle adapter: 30o 45o 60o 90o

3 - Impact particles: 4 ~ 5mm sharp GH diamante steel Grit, just pill Features · The ejection nozzle is free and fast, complying with standards such as VDA and SAE.

· The touch screen setting makes the test process more convenient and concise.

· Plate type test sample angle can meet the requirements of 0-90 ° settings at 15 ° intervals.

· Continuous or intermittent operation can perform multiple tests in a short time.

· Feed rate is adjusted by electromagnetic vibration feeder.

· The large volume compressed air storage tank keep pressure and flow constant while controlling the pressure through control valve in the ejection nozzle.

· It is equipped with various safety protection measures: safety power-off device, air pressure safety protection device, which conforms to European CE and EMC certification.
