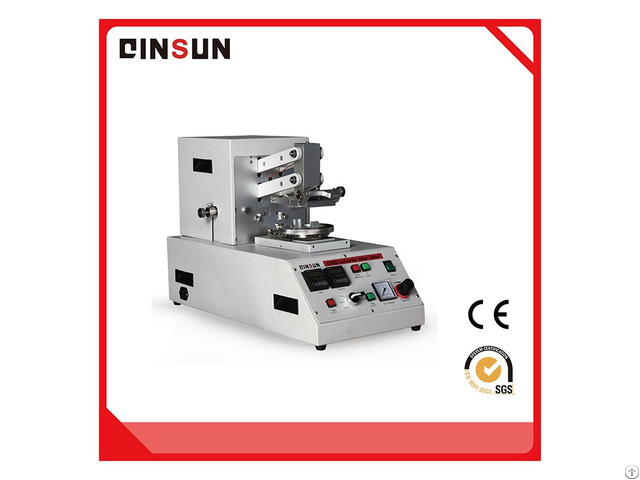

Stoll Quartermaster Abrasion Universal Wear Tester - China

Quartermaster Universal Wear Tester Applications:

Universal Wear Tester is used to determine the wear and abrasion resistance of fabrics used in clothing, footwear and industrials.

Product Information:

The instrument can conduct flat grinding, curved grinding, edge grinding, fold grinding and abrasion test such as frosting resistance, welt, gigging, which is used for the woven fabric, knitted fabric and coated fabric, pile fabric, socks, felt, non-woven, deep fabric, yarn, cord, plastic film, rubber, leather, paper, and many other materials.

By the test sample can be dry, also could be immersed in water, oil, or in other liquid.

Standards ASTM D3514/D3885/D3886, AATCC 119/120, FTMS 191/5300/5302, FORD EFB 15J2/BN 112-01 Accessories

Frosted accessories

Cloth edge and fold between the friction sample

Elastic friction pad

Abrasive 50 yards / roll

3 rating cards for ASTM D3514 Technical Parameters

The test runs in automatic mode, ensuring both accurate of the test results with repeatability and eliminating the need for the operator to evaluate the test results;

The advanced gripping device ensures constant sample tension;

With a flat-grinding test head (inflatable membrane type of wear test method) and a mill-grinding test head and the required weight and the initial abrasive;

Built-in timer and mechanical cycle counter;

The machine with a reciprocating table, flat grinding / mill grinding test head mounted on top;

Clamping ring inner diameter: 94 mm;

Lock ring height: ≤9.5 mm;

Speed: 120 ± 15/min;

Moving: 25 mm;

Air pressure: 62 kPa (9 psi);

Dimensions: 330 × 500 × 460mm (length × width × height);

Weight: 33kg (72lb);

Power: 120/230 V, 50/60 Hz, 2A / 1A.
