Sr Giant Mag Magnet - China

SR Giant-Mag™ magnet Features： Compact design- Single piece mandrel.

High strength rare earth magnets.

Fixed stabilizer sleeve to provide stand off when POOH.

Optional dedicated flow channel to prevent flow path restrictions when packed full of debris Advantages： Removable magnets for body inspection .

Recovered material is easily removed on location.

High temperature rating on magnets up to 350%F (177°C) .

Debris channels allow for larger volume of ferrous material to accumulate.

SR-Mag™ magnet Fishing Magnet is a fishing tool for recovering iron scraps and dirt which are generated during the cleaning operation of petroleum, geological drill and casing repair and cannot be returned by circulating liquid; wherein, magnetic scraps in the dirt will be attached on external pipe in the position of magnetic ring, and those cannot be attached for circulation will deposit inside the recovery barrel and then be brought out of the well.

It possesses advantages such as simple structure, convenient operation and reliable performance.

It can utilize the permanent magnet of itself to attract small objects which fall off, thus effectively fishing this kind of fallen objects, and realizing the purpose of purifying the bottom hole.

Structure and Principle

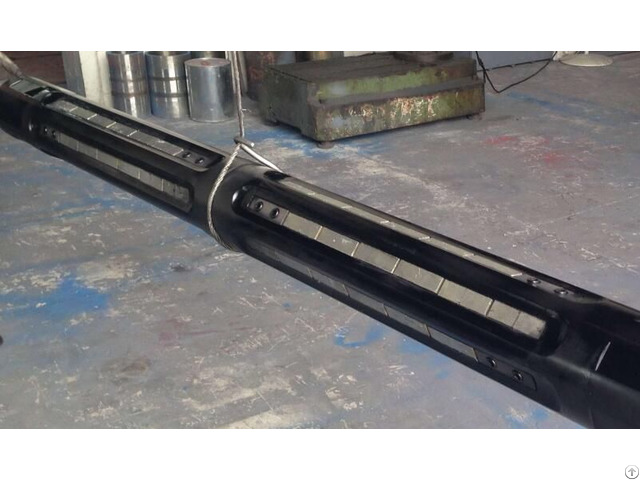

he structure is as shown in Figure 1 - The Efficient Fishing Magnet mainly consists of main body, rectangular magnet.

Its function is to recover dirt which cannot be returned by circulating liquid in the well; wherein, magnetic scraps in the dirt will be attached on magnetic ring, and those cannot be attached will deposit inside the recovery barrel and then be brought out of the well.
