Spray Test Instruments - China

Testing Standards:

ISO 4920, BS EN 24920, BS 3702, GB/T 4745, AATCC 22, M&S P23, NEXT 23 Applications:

Spray Rating Tester is used to determine the surface wetting resistance of fabrics.

Product Information:

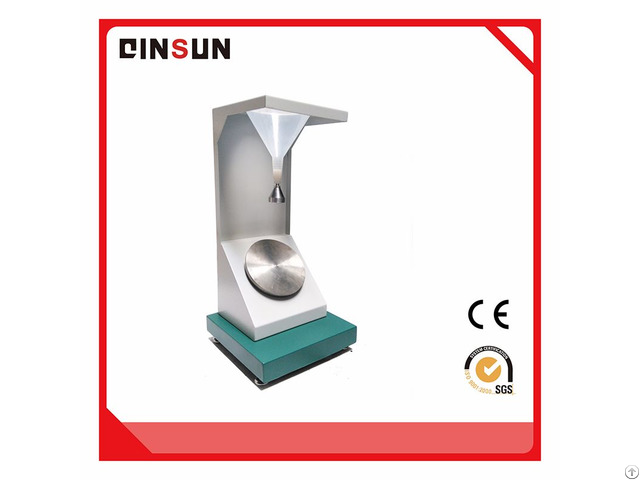

The Spray Tester comprises a metal framework allowing distilled water to be sprayed through a nozzle onto a test specimen at 45° and 150mm below.

The appearance of the specimen is compared against an optional photographic scale to rate.

Instrument features:

1 - The instrument structure is simple, mainly by the main frame, funnel, nozzle, sample holder and sample holder;

2 - Nozzle have a total of 19 aperture evenly distributed, the aperture required by the standard custom.

250ml of water poured into the funnel can flow out of the nozzle within 25-30s;

3 - The racks on the upper edge of the racks are at a 45 ° angle to the horizontal;

4 - The center of the upper edge of the sample holder ring, ie the distance from the center of the sample to the nozzle, is 150 mm.

Technical Parameters:

1 - Structure: stainless steel;

2 - Surface treatment: painting;

3 - Dimensions: 230 × 250 × 500mm (length × width × height);

4 - Weight: 5kg (11lb).
