Smt Cm402 M Pick And Place Machine - China

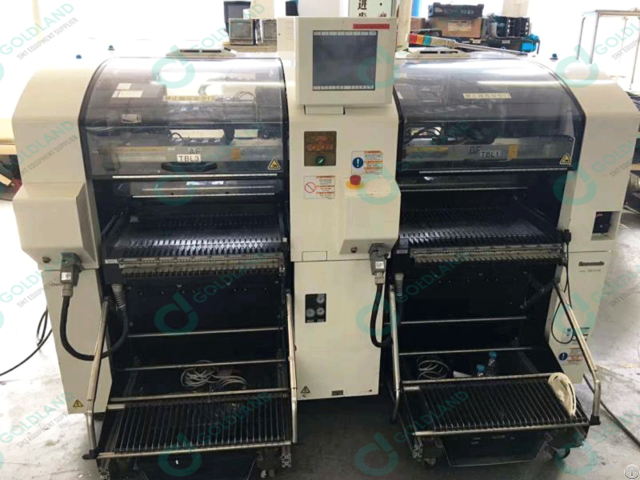

CM402-M pick and place machine Product Details: MODEL ID: CM402-M

MODEL NUMBER: KXF-4Y3C

PCB DIMENSIONS: L 50 mm x W 50mm to L 330 mm × W 250 mm

HEAD TYPE: Type A-2 (12/12 nozzles HIGH-SPEED) (OPTION)

Number of nozzles: 12 nozzles/head Maximum speed: 0.052 s/chip (69, 500 cph)

Placement accuracy: ±40um/chip

Component dimensions: (01005")0402 chip to L 12mm x W12mm xT6.5mm

HEAD TYPE: 8+8 HIGH-SPEED (OPTION)

Number of nozzles: 8 nozzles/head Maximum speed: 0.06 s/chip (60, 000 cph)

Placement accuracy: ±50um/chip

Component dimensions: 0201 (0603) C, R to L 24 mm × W 24 mm

HEAD TYPE: 8+3 MULTI FUNCTION (OPTION) Number of nozzles: 3 nozzles/head

Maximum speed: 0.21 s/QFP (17, 140 cph)

Placement accuracy: ±0.035 mm/QFP

Component dimensions: 0402 (1005) C, R to L 100 mm × W 90 mm

PCB EXCHANGE TIME: 0.9 s (board length: up to 240 mm)

ELECTRIC SOURCE: 3-phase AC 200 V ±10 V / AC 400 V ±10 V, 2.5 kVA

PNEUMATIC SOURCE: 490 kPa, 150 L/min (standard, machine body only)

DIMENSIONS W 2, 350 mm x D 2, 460 mm x H 1, 430 mm

MASS 2, 700 kg
