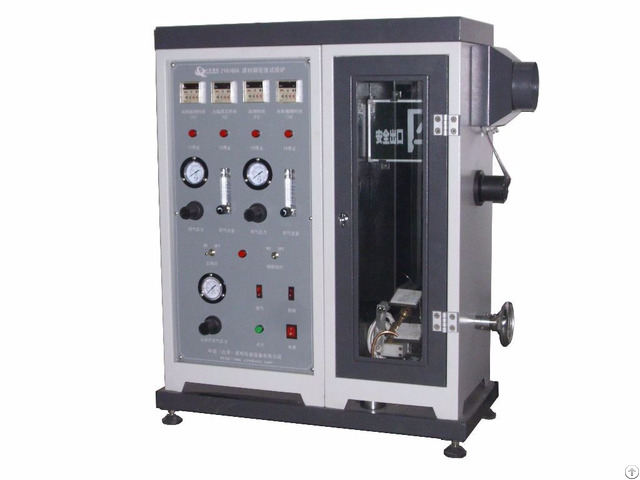

Smoke Density Tester For Building Materials - China

Smoke Density Tester for Building Materials Smoke Density Tester for Building Materials main purpose:

Building smoke density tester, plastic smoke density tester is with built-in burning lamp, and by the smoke box into a 45 ° angle, for the determination of building materials, solid materials and related products combustion static tobacco production.

Standard:

GB/T 8627, ASTM D2843 Building Materials Smoke Density Tester, plastic smoke density tester main parameters:

1, gas source: 95% propane gas, or the same purity of gas (customer-owned);

2, the burning lamp: Bunsen burner, length 260mm, nozzle diameter 0.13mm, and the smoke box into a 45 ° angle;

3, the optical system: light source for the bulb, power 15W, operating voltage 6V;

4, smoke density measurement range: 0 ~ 100%;

5, smoke density measurement accuracy: ± 3%;

6, the receiver: silicon photovoltaic cells, light transmission rate of 0% without light through the light transmission rate of 100% completely blocked by no light;

7, the focal length after treatment: 60 ~ 65mm;

8, the main burner working pressure: 276KPa (adjustable);

9, auxiliary burner pressure: 138KPa (adjustable).

Building Materials Smoke Density Tester main feature:

1, automatic timing, automatic ignition, automatic exhaust; luminous flux can be automatically corrected;

2, with a strong exhaust fan, after the test, the exhaust gas can be discharged outside;

3, computer control, including a set of light transmittance measurement software, which can output curve statements, the data can be automatically saved and printed.
