Small Oil Free 5t Electric Press For Use In Glove Box - China

CY-5TA is a small oil-free electric press specially designed for use in glove boxes.

It can press some oxygen-sensitive materials and the maximum pressure is 50000N.

Therefore, the press is driven by a DC24V motor and can be used in a glove box protected by an argon atmosphere.

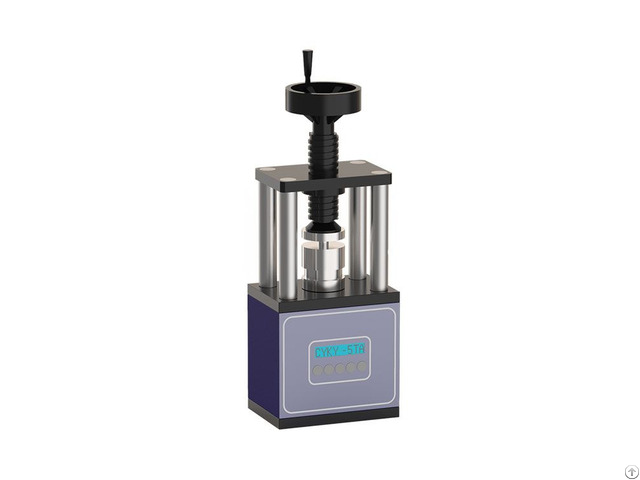

It also completely solves the problem of oil leakage in the glove box of the traditional hydraulic press (the actual product shall prevail, the picture is for reference only)

Technical parameters:

Pressure control

Pressure display range: 10-50000 Newton

Pressure control range: 1000-50000 Newton (adjustable)

Constant pressure accuracy: ±50 N

Working space

150mm(L) x 100mm(W) x 120mm(H) (adjustable height)

According to different sample sizes, different sizes of pads can be configured

Press stroke: 35 mm
