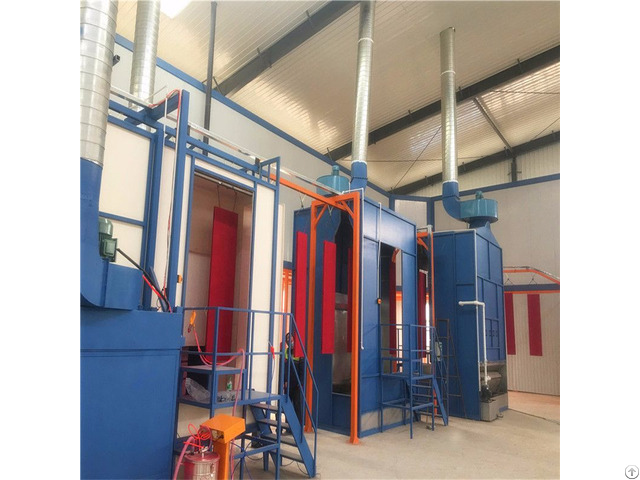

Small Manual Powder Coating Booth Advanced Electrostatic Spraying Paint Machine - China

By the Chambers, water board, the water pump line, convulsions equipment, purification equipment, electronic components, etc.

Water spray room is the use of water at the bottom of the plate, vortex rolled plate and baffle plate finish to filter paint mist, the waste gas purifying effect.

Work, including paint mist air in fan under the action of gravity, the overflow tank water, formation water and the surface of the pool right in front of the water, paint mist will encounter water or pool surface adsorption by water, under the secondary impact of vortex volume fell into the water accumulated in the tank.

Without touching the water mist from the lower part of water back into the spray chamber, the spray jet spray irrigation, secondary collect paint mist.

Paint with water spray mist in dehydration indoor from collision and form containing paint fog droplets of water, falling into dehydrated the bottom of the chamber to sink deposited, after the separation of the air by the fan discharge outside.

This part belongs to air emissions, conditional can be mounted to the box or waste gas purification equipment, the waste gas of benzene, toluene, xylene and other harmful substance content processing to GB 16297-1996 national emission standard.

1) The conveyor chain is forced by driving unit to make it go along track.

When it comes to different sections of track, it can automatically make corresponding changes on convey height and direction.

The driving units are equipped with safety pin protection for overloading.

2)Temperature expansion joint: when the convey track comes across drying furnace, the high temperature may cause thermal deformation on conveyor chain.

Thus we design expansion joint at both ends of high-temperature zone for compensation.

3)The lubrication unit is helpful in drop oiling for axis pin, cross head and roller for regular maintenance.

4) Stepless regulation of convey speed for easy control and auto failure alarm for safety production.

Heating methods are divided into coal heating, biological particles heating, diesel heating, liquefied gas heating, compressed natural gas heating and natural gas heating.

It is generally recommended to use natural gas to heat the environment and to protect the economy.
