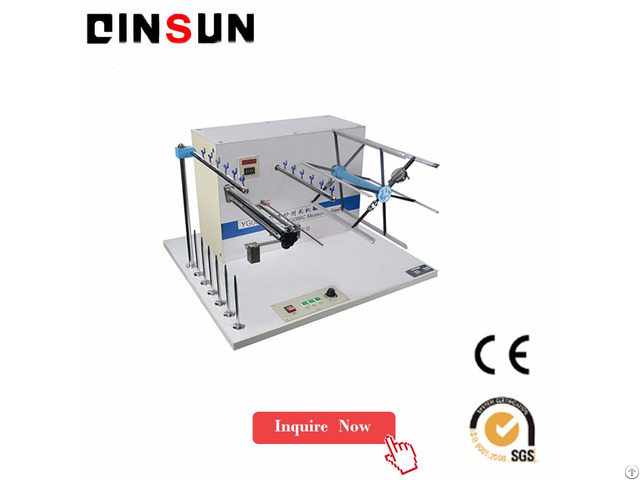

Skein Length Tester For Textile - China

Standards

GB/T 4743 Textiles－Yarn from packages－Determination of linear density (mass per unit length) by the skein method

GB/T 14343 Testing method for linear density of synthetic filament yarns

GB/T 6838 Testing method for sewing threads

ISO 2060 Textiles-Yarn from packages-Determination of linear density (mass per unit length)-Skein method

ASTM D1907 Standard Test Method for Linear Density of Yarn (Yarn Number) by the Skein Method Features

OEM modeling

True single-chip microcomputer control, digital circuit, start and stop smoothly.

You can design parameters.

Besides, it is real-time speed, and the whole machine is no contact relay

It can be set to stop the first 1 ~ 5 laps in advance to slow down to greatly avoid the phenomenon of punching, mature and reliable electrical circuit: start and stop smooth, low noise operation, accurate circle, no ring phenomenon, good reliability, low failure rate

And the microcontroller set as one of the electronic counter.

With real-time speed function

Continuous step-less speed regulation Structure principle:

1, the real single-chip domination, mature and reliable electrical circuits: start and stop smoothly, low noise, accurate loop-counting, no loop-clashing phenomenon, Good reliability low failure rate.

2, SCM design as one of the electronic counter

3, with the real-time speed measurement function

4, continuous variable speed

5, can set the final stop early deceleration, smoothly stop rotating, greatly avoiding the phenomenon of loop-clash

6, the sensor dynamic measurement, LED display Main Specifications:

1, can be swirled only count: 1 ~ 6 tube

2, yarn frame circumference: 1000mm ± 1mm

3, yarn frame speed: 30r / min ~ 260r / min (Promise speed)

4, yarn frame laps set range: 2 ~ 9999 circle

5, swinging traverse reciprocating stroke: 35mm ± 0.5mm

6, a single yarn tension range: 0cN ~ 100cN

7, Tension test method: dynamic sensor measurement, digital display

8, 1 to 5 laps ahead of time to stop the slow setting, stop rotating smoothly, no skidding, punching phenomenon

9, SCM design as one of the electronic counter

10, all LCD display, no wear and tear

11, motor power: 60W

12, the power supply voltage: AC220V, 50HZ

13, Dimensions: 780mm × 660mm × 480mm

14, equipment weight: about 45Kg
