Single Piece Centralizer - China

Single Piece Centralizer

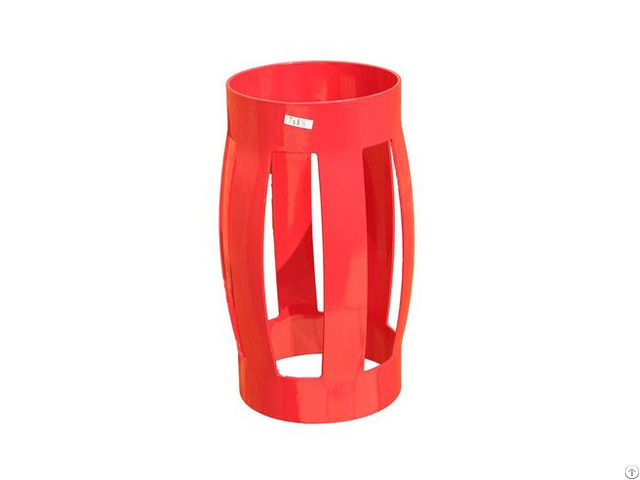

Single Piece Bow Spring centralizer is constructed from one piece ensuring high restoring force, uniform hardness and shock absorption.

The advantage of the single piece centralizer is that its smooth corner radius reduces friction ensuring that fluids can flow more easily without obstruction.

Features

• Rating—API Specification 10D Standard

• Design features

1 - Smooth bow profile overall

2 - Non-welded

3 - Made to gauge

4 - Integral bow design for increased strength and performance

5 - Zero weak points, such as hinges, welds, or mechanical interlocks

6 - Flexible to absorb both axial and radial loading

7 - Powder coated red finish

• Performance

1 - Zero start and running force with exceptional restoring force

2 - Improved flow by area and improved pipe rotation

3 - Low torque and low drag units

4 - Improved zonal isolation

• Applications

1 - Used in most well applications and geometries for vertical, horizontal extended reach drilling, close tolerance, or underreamed well conditions

2 - Specialized in centralization for underreamed sections

3 - Recommended to be run between limit clamps

4 - Sizes available—4-1/2 to 20 in.

; custom sizes available

Zhongshi manufacture casing centralizer, float equipment, cementing head, cementing plug and stage collar etc.

We have 19 years manufacturing experience of petroleum machinery products till now.

Company Contact:

• Posted By: Puyang Zhongshi Group Co., Ltd.

• Phone: 86 022 23456997

• Address: Mazhuangqiao Industry Zone, Puyang, Henan, China, Henan , China

• Email:

• Website: https://www.cementingtool.com/

• Business Description: Puyang Zhongshi Group Co., Ltd. was founded in 1996, which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC .

  The company registered capital is 60.83 million yuan, with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff .

  Oil machinery is our main products, the leading products include pumping unit, subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels, drilling solid control series products and cementing accessories, such as Casing Centralizer, Cementing Basket, Float Equipment and so on.

  We had attained ISO 9001 in 1998 and API Certificates in 2002 .

  We always insist on the implementation of “consolidating the Central Plains, reaching out to the world”, at the same time expanding domestic and overseas markets.

  For decades, our products are not only on admission Central Plains, Daqing, Shengli, Nanyang, Yanchang, Changqing, Karamay and other domestic major oil fields and coal-bed methane areas, but also are exported to Southeast Asia, Northern Europe, the Middle East, Africa and South America market.

  We have successively established long-term strategic cooperative relations with the oilfield market customers of Sudan, Russia, Kazakhstan, Indonesia, Iran, Syria, Venezuela and other countries .

  We would like to faithfully cooperate with friends from all circles with classic products and service to achieve common development .
