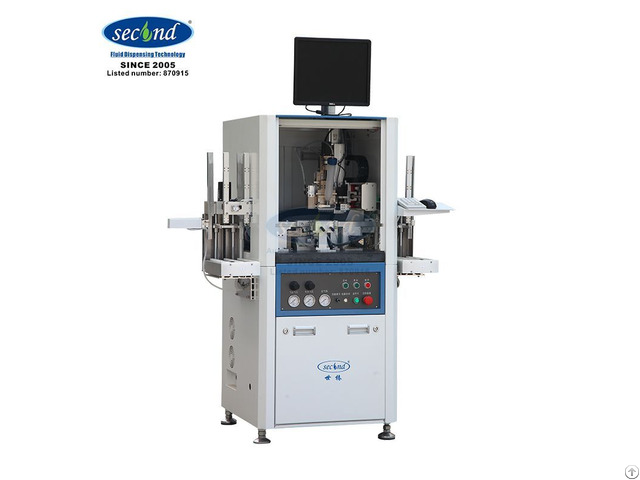

SEC-100K Automatic Volumetric Dispensing Machine

Machine performance

1 - High precision automated dispensing machine Adopt digital vision system to quickly capture the reference point;

2 - Equipped with high-precision quantitative glue supply device to ensure accurate glue quantity;

3 - With parameter memory function, easy to operate;

4, using high-precision CCD3 yuan automatic positioning, more accurate dispensing;

5 - The track design uses secondary positioning technology, the needle spacing uses digital vision

system positioning technology, and the distance between the needle and material uses precise positioning technology;

6 - With bracket heating function;

7, with automatic needle cleaning, with test glue function; automatic loading and unloading;

8, anti-collapse function, automatic detection.

9, anti-LED bracket feeding error function, automatic detection.

10 - Suitable for patch: SMD020, 3528, 5050, 3014, 3535, 3020, etc

high precision glue dispensing machine Technical Parameters

Model: SEC-100K

Working stroke: 210MM (X) * 200MM (Y) * 50MM (Z)

Metering method: Volumetric multi-head dispensing valve

Control method: computer servo control

Drive method: X-Y-Z axis servo drive

Accuracy: 0.005MM

Dispense displacement error: <0.005MM

Operating viscosity: 1-20000CPS

automatic glue dispensing machine Glue amount control range: 0.0001ML-0.628ML

Capacity: 60K / H ~ 160K / H (long)

Air source: 6kg / C

Power: 1000W

Power: 220V

Weight: about 300kg

Equipment size: 1300mm (L) * 760mm (W) * 1860mm (H)
