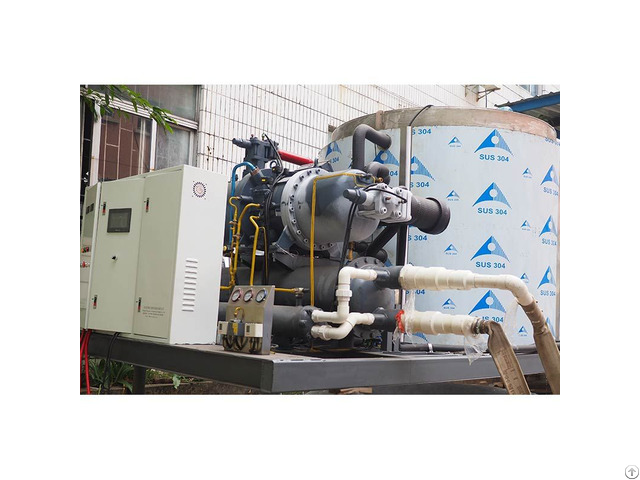

Sear Water Ice Machine - China

The feature of the flake ice maker

Seawater flakes, like freshwater flakes, are snowy, soft, easy to use, and have a good fresh-keeping effect, which can meet the needs of fish products for preservation and quality.

1, using SUS316 stainless steel evaporator;

2, the frame is available in carbon steel and stainless steel;

3, using deep oil tank piston compressor and special seawater condenser, longer service life;

4 - Water-cooled units do not need to be equipped with cooling towers, which can greatly reduce customer costs.

5, can be directly installed on the fishing boat, more convenient to use.

The flakes are flakes, dry and loose white ice, ranging in thickness from 1.0 mm to 2.5 mm, irregular in shape and about 12 to 45 mm in diameter.

Flake Ice Flat in Shape

Safety and Sanitation

High Reliability and Low Breakdown Rate

High Efficiency and Energy Saving

Simple Maintenance and Convenient Moving

10Ton/Day Industrial Flake Ice machine specification

Item Name Sea Water Ice Machine Fresh Water Ice Machine

Model YTC-10TS YTC-10TF

Compressor power 60HP 50HP

Ice Evaporator Stainless Steel 304 Carbon Steel

Daily Output 10000kg/24H 10000kg/24H

Ref.

Capacity(Kcal) 83850 51600

Temp.

Evaporator(℃) -22(℃) -18(℃)

Temp.

Condenser(℃) 40(℃) 40(℃)

Total Power (kw) 53.42 41.84

Cooling Mode Water Cooled Water Cooled

Power Supply 380V/3PH/50Hz 380V/3PH/50Hz

Refrigerant R404 R404

Unit Weight 1850 1640

Unit Size 1750x1190x1410mm 1750x1190x1410mm

Ice Storage Size 1750 x 1480 x1290mm 1750 x 1480 x1290mm
