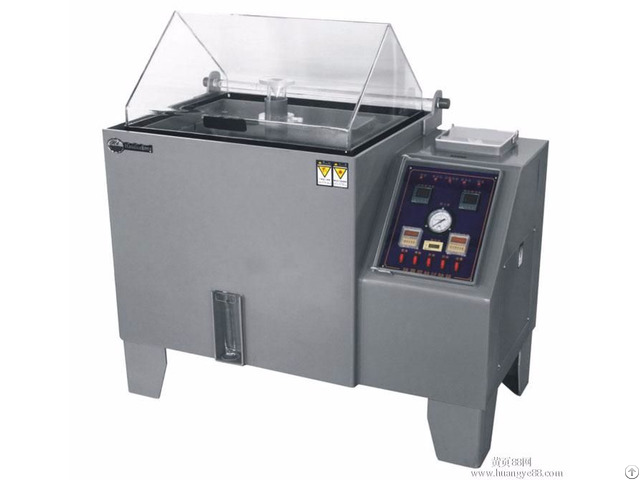

Salt Spray Corrosion Resisting Testing Chamber - China

Salt Spray Tester is used to create a salt spray fog in a controlled test environment.

The anti-corrosion quality of materials protected by rust-proof paint, coating, electroplating, and anodizing can be tested in a chamber with capacities ranging up to 1440 liters.

Introduction

Salt water spray test device: This device is used to test the surface treatment of various materials.

The so-called treatments include coating, electroplating, films of organic and non-organic materials, anodizing, anti-rest oil and corrosion resistant treatment, which may achieve the purpose of keeping the items from being corroded for a longer period.

Feature & Parameters 1 - The whole system using PVC plate, lined with the use of advanced three-dimensional reinforcement ring technology, structure and strong real, never deformation.

2 - Five direction heating system to ensure heat distribution within ±1oC.

3 - Highly advanced spray nozzle with accuracy of spray misting within ±0.3ml/80cm2.

4 - Saturated air with Henry's law.

In order to heated humidification, and provided the necessary laboratory humidity.

5 - Temperature control uses P.I.D temperature controller within ±0.3oCaccuracy.

6 - The only use of early warning device test solution is too low, when the test solution is only enough for 5 hours and then spray the buzzer supplement will notify the user to ensure that the test of the value of the continuous spray.

7 - The only use the full detection system, when a failure occurs, you can display or alarm lights inform.

8 - With a spray and standing time period setting (for CAPA, SAE, ASTM).

9 - Meets ASTM B117-03 the new improved design.

Technical Parameters MODEL ITEM TMJ-9702(ECONOMIC) TMJ-9703(OVERSIZE)

TEST APPLICABLE NSS, ACSS, CASS NSS, ACSS, CASS

TEST TEMPERATURE 35oC±1oC or 50 oC±1oC 35 oC±1oC or 50 oC±1oC

INSIDE DIMENSION 600x450x400(WxDxH) mm 1600x1000x500(WxDxH) mm

OUTSIDE DIMENSION 1140x760x1190(WxDxH) mm 2300x1500x1200(WxDxH)mm

VOLUME 108 LITER 800 LITER

WEIGHT 60 KG 360 KG

TEST SPECIMEN (150x70mm) at angle of 20°±5° 24 PCS 136 PCS

SOLUTION TANK CAPACITY 15 LITER 60 LITER

TESTING TIME 90HR 180HR

POWER CONSUMPTION 220V SINGLE PHASE 2KW 220V SINGLE PHASE 8KW
