S147 Rapid Response O2 Co2 - China

The S147 Rapid Response O2/CO2 Analyzer combines both a laser diode O2 sensor and an infrared CO2 detector.

This flow-through analyzer is designed for measurements of rapid changes in O2 and CO2 such as those occurring during O2 uptake and CO2 production from breath by breath measurements of human respiration.

The S147 Rapid Response O2/CO2 Analyzer has a built in pump which is set at 300 mL/min to draw samples in through the “Gas In” port located on the front of the analyzer.

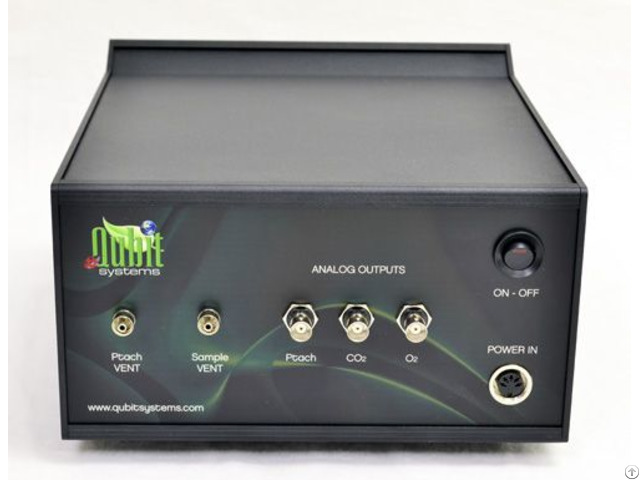

Gases exit the analyzer through the “Sample Vent” on the back panel.

Sampling and exhaust gas should be at or near atmospheric pressure to avoid pressurizing the gas sensors.

On the front panel there is a “Ptach” input to a differential pressure sensor (pneumotachometer) which can be used for measurements such as breath flow.

This differential pressure sensor is open to atmosphere through the “Ptach Vent” on the back panel.

There are “Zero” and “Span” controls on the front for calibrating the O2, CO2 and differential pressure sensors .

“Span” for CO2 and O2 should only be adjusted if calibration gases are available.

The pump speed control is located on the front panel and allows +/- 30ml/min adjustments from the factory setting of 300ml/min.

Features

Applications

Specifications

References

Rapid response infra red CO2 sensor (150ms)

Rapid response laser diode O2 sensor (140ms)

Differential pressure sensor included

Easy two point calibration

Built in gas pump for sampling at 300ml/min

500 ml/min flow meter included
