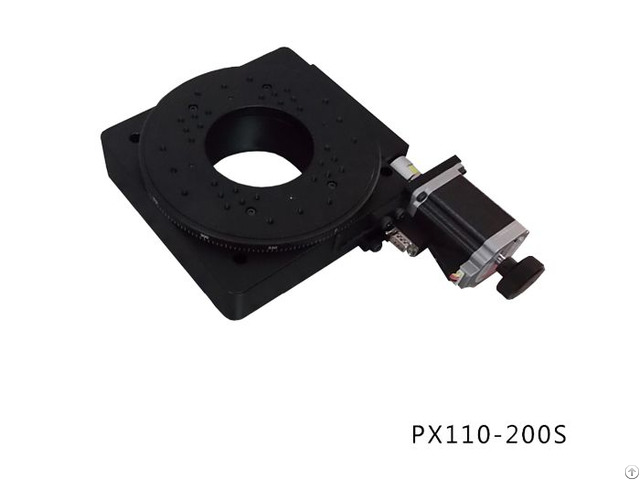

Motorized Rotation Strage, Optical Rotating Platform, Motorized Rotary Stage PX110-200S

Motorized Rotation Stage

Motorized Stage

SPECIFICATION:

High Precision Motorized Rotation Stages using, New construction, new technology;the key index has up to the international level of the similar products by strictly inspection .

This series products are used to laser precision processing, three dimensional scanning measurment system and so on .

If you need a zero switch, please let us know in advance.

Model Number PX110-200S

Structure Angle Range(mm) 360° Platform(mm) φ200 Transmission Ratio 180: 1 or 90: 1 or 45: 1 (Choose one of the three) Drive Mechanism Worm Gear and Worm Travel Guide Bearing Stepper Motor (1.8°) 57BYG Material Aluminum Alloy Surface Preparation Black-Anodized Load Capacity(Kg) 55 Weight( Kg) 9

Accuracy Resolution 0.01°=36”(Non MS) 0.0005°=1.8”(20 MS) Velocity 25°/sec Repeatability 0.005°=18” Absolute Accuracy 0.01°=36” End Jump 15μ Backlash 0.005°=18” Eccentric 20μ Lost Motion 0.005°=18” Parallelism 100μ

ADVANTAGE: PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages, High quality China Motorized Linear Stage.



The products can be produced according to your needs if it don't meet your need.
