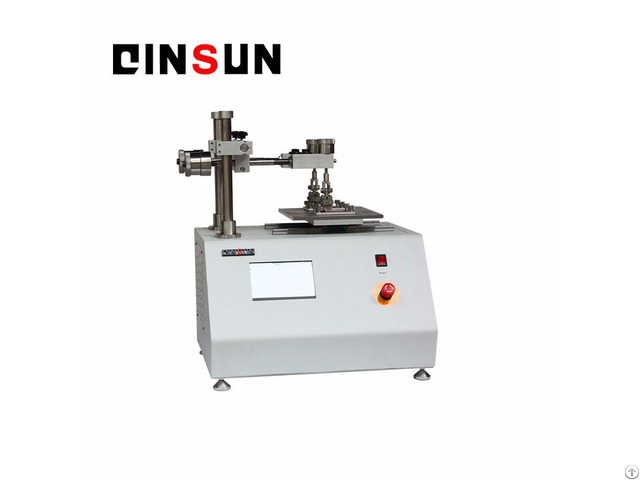

Reciprocating Abraser For Paint Plastic Decorative Fabrics Automotive Interior - China

Reciprocating Abraser is used to determine the scratch resistance and wear resistance for paint, plastic, decorative fabrics, automotive interior, cashmere fabric and others.

Application Features:

Reciprocating wear machine is used for detecting the Scratch resistance performance and abrasion resistance performance of coatings, plastics, decorative fabrics, automotive interior, cashmere fabric, such as scratch resistance and wear resistance.

LCD screen controls and displays the test process, can set the number of reciprocating wear, movement stroke, reciprocating speed and other parameters according to user needs .

The instrument has Unique friction arm design and achieve the replacement of different friction head.

It accurately controls the implementation of pressure according to the principle of leverage balance.

The instrument Fully meets the different requirements for different forms of friction, friction head, pressure and so on.

At the time of testing, the test sample was fixed on a horizontal sample stage and was worn along with the horizontal movement of the sample stage Under specified abrasives and loads .

The other end of the test arm was fitted with a weight to maintain the balance of the test arm to ensure the accuracy of the sample surface load.

Abrasive and load rack height is adjustable to suit the testing of different height samples.

Instrument principle:

The tested product is fixed on a horizontal table and is worn under the specified abrasive and load with the horizontal movement of the aquarium.

Using the principle of the lever, the other end of the test arm fits the weight to maintain the balance of the test arm to ensure the accuracy of the sample surface load and the reliability of the test results.

Abrasive and load rack height is adjustable to suit the test of different height samples.

In addition, according to the different requirements of customers, the instrument uses different friction media to test the wear resistance of different products.

STANDARDS

1 - ASTM F2496 Standard practice for determining the scratch hardness and scrape Adhesion of prints and coatings active standard.

2 - ISO 1518-1 Paints and varnishes - Determination of scratch resistance - Part 1: Constant-loading method.

3 - ISO1518-2 Paints and varnishes - Determination of scratch resistance - Part 2: Variable-loading method.

4 - GME 60248 Paint elasticity and textile interiors material-Resistance to scratching.

5 - D44 1221 Fluff surface material-Resistance to scraping by abrasion.

6 - D14 1055-2004 Materials and organic coatings-wear by rubbing.

7 - D42 1775-03-2001 Inside and outside plastic parts-Resistance to scratching by abrasion.

Features

1 - LCD screen control, you can set the speed, the number of reciprocating motion and other parameters

2 - LCD screen real-time display and control the test condition, two-station design, to save test time.

3 - Meet a variety of standard requirements.

Provide the weights and friction heads according to the needs of users.

Configuration 1 - Main engine: 1 set

2 - Test arm suit: 2 set

3 - Weight suit: 6 (1N, 2N, 2.5N, 5N, 10N, 24N)

4 - Φ15 abrasion head: 2 (semicircle R18, length 40mm)

5 - Sample holder: 2 set

6 - Brush: 1

7 - Grinding head repair sandpaper: 1 pack (20 pieces)

8 - Stainless steel abrasive fixed

9 - CS-10 grinding head: 2

10 - H-18 grinding head: 2 Technical Parameters

Items Parameters

Stroke range 6-120mm, adjustable

Speed range 1-100 reciprocating/min, stepless adjustable

Weight Approximately 48.5kg

Dimension 532mm*471mm*630mm(W*D*H)

Power 220V, 50HZ, 1A
