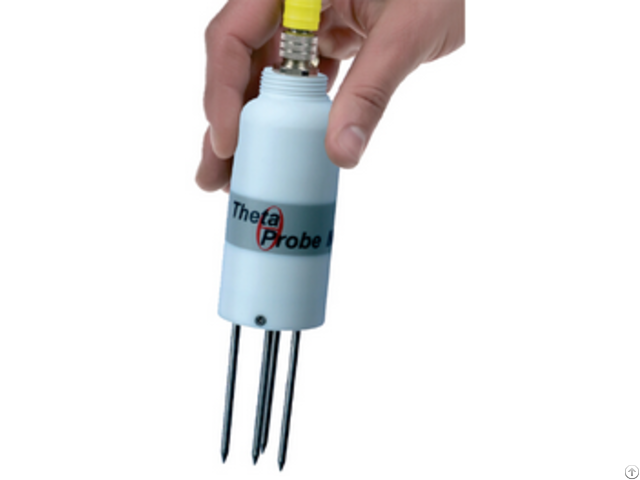

Qt Ml3 Portable Soil Moisture Temperature Meter - China

Product description: QT-ML3 portable soil moisture/temperature meter can be used for the measurement of moisture of various types of soil and media, and it can be used as a basic tool for on-site observation or mobile measurement.

QT-ML3 Portable soil moisture/temperature meter Principle Using FDR (frequency domain reflectometry) principle, the sensor emits electromagnetic wave with a certain frequency, the waves transmit along the probe till they reach the bottom of the probe and return to the sensor, the output voltage is recorded.

Because the dielectric constant of the soil usually depends on the soil moisture, the soil water content can be calculated according to the relationship between the output voltage and soil moisture.

Feature GPS coordination can be recorded

Record data Automatically or manually

Wireless data transmission via Wi-Fi

Recognize sensors by two-dimensional code

Automatically recognize connected sensors

Terminal memory card is up to 32G

Display real-time data and curve of recorded data

Export data to Excel for analysis

Technical parameters ML3 Measurement range 0~100% vol Accuracy ±1% (0~50% and 0~40℃) Salt error ≤3.5%(50~500 ms/m and 0~40% vol) Output 0~1V differential≈Nominal 0~60%vol Induction area 70 mm diameter x 55 mm height Cable length Standard 5 m (maximum 25 m) Power requirement 5~14V, 1s about 18mA Output 0~2V or 4~20 mA Operating temperature -20℃~60℃ Size 40mm diameter x143 mm height Protection grade IP68 Android terminal CPU Quad-Core: 1.3GHz Operating system Android 4.2 ROM 4G RAM 1G Extended memory up to 32G Screen size 5.0 In.

Screen resolution 960*540 Operation mode Touch screen Screen color support 16 million Origin: China
