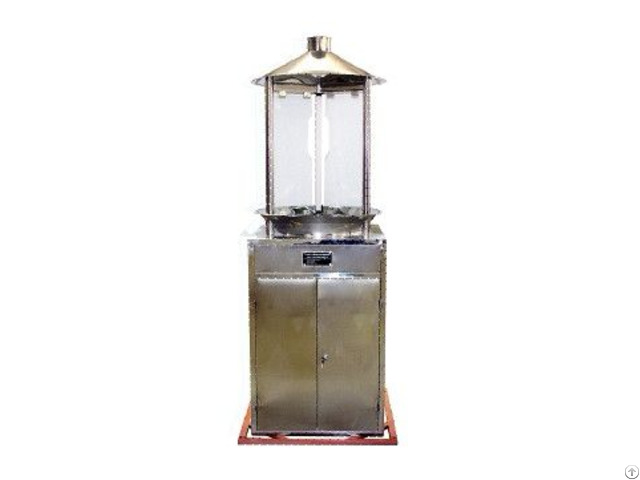

Qt Cb01 Automatic Insect Pest Inspection Lamp - China

Features: LED displays air temperature and humidity, pointer shows instrument voltage and current;

The production and inspection in line with the GB/T 24689.1-2009 plant protection machinery standards;

Use optical, electric, and numerical control technologies, compatible with ATCSP plant diseases and pests inspection and prevention system;

Auto-on in the daytime and auto-off at night.

Nighttime working status is not affected by instantaneous intense light ;

Use far-infrared light to process pest bodies rapidly (no poison bottle);

Insect chamber has an auto rotation system with gear drive, which ensures separate insect samples collected in 8 different time periods;

Rain control device can automatically manipulate the work of the whole lamp according to rainfall change;

Drainage device can effectively separate the insects from the rain;

QT-CB01 Automatic insect pest inspection lamp Technical parameters: Light trap 20 w black light lamp (main wavelength 365 nm) Lamp body material GB32080-92 stainless steel structure, in accordance with GB/T4237 Lamp support material GB3280-80 stainless steel Lamp dimension 650 mm×650 mm×1900 mm Power supply DC 24 V; 24 V 100 W solar panels, 24 V 38 AH storage battery Power consumption Standby no more than 5 W, total power consumption no more than 300 W Startup time within 5 s Temperature control of far-infrared insect pest chamber 85 ± 5 ℃ after 15 min of operation, processing time is adjustable (15 choices) Insulation resistance ≥ 2.5 MΩ, with a leakage protection device Far-infrared insect body treatment The fatality rate is no less than 98%, integrality of insect body is no less than 95% Hitting screen size the two hitting screens are with an Angle of 120 degrees, 595 ± 2 mm long, 213 ± 2 mm wide, 5 mm thick Design life ≥ 5 years ORIGIN: CHINA
