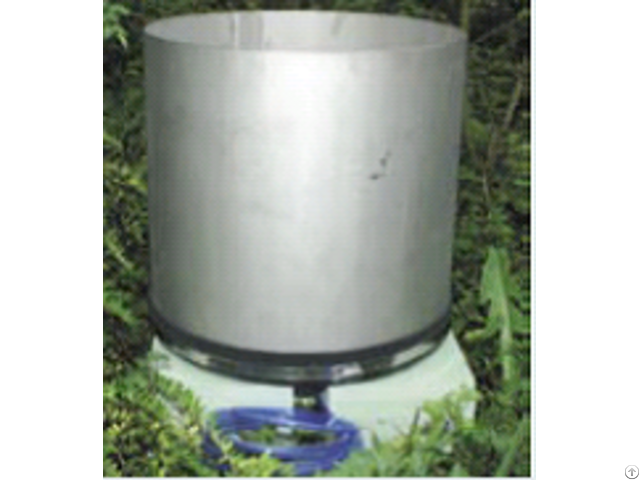

Qt 3051 Series Micro Soil Lysimeter - China

Product description: A reasonable assessment of water balance and evapotranspiration is an important part of hydrological cycle; a lysimeter is a useful tool to evaluate the use of water in the soil, water storage and transfer in the same location.

QT-3051 series lysimeter can apply to laboratory for the study on parameters relevant to water balance.

QT-3051 series Micro soil lysimeter To make calculation easy, the height of column barrel of this system is designed to 300 mm, 600 mm, 1200 mm respectively, other height can be customized.

The system uses state-of-the-art high-resolution weighing system, high-precision soil moisture and water potential sensor to ensure the accurate measurement of the entire system.

Applications The lysimeter system can be used in many area, such as water characteristic curve, ecological restoration, small-scale simulation experiment, fluidity of soil water, soil mass transfer, soil absorption and buffering, water balance analysis, leachate analysis, groundwater recharge analysis, mass migration, material transformation research, farming method research, climate research, energy balance studies, correction of simulation experiment, water flux studies, simulation studies on groundwater recharge, determination of the leachate and so on.

Measurement Parameters Soil column weight

Soil water potential

Soil moisture

Soil temperature

Data acquisition Basic Input: 8 differential analog channels Channel extension: AM16/32 channel expansion module, 32 differential analog channel Storage capacity: 4M memory card Technical parameters Measurement items Measurement range Accuracy Soil water moisture 0- saturation ±3%Vol Soil water potential 0 to -1500 kPa ±10kPa(0 to -100 kPa) 10%(-100 to -1500 kPa) Soil temperature -40 ~ 60℃ ±0.2℃ Soil column weight Optional 100 Kg, 300 Kg, 600 Kg 0.03% Optional：Soil solution sampling Description Capacity of sampling cup 500mL Length of sampling tube 10, 15, 20, 25, 30 to 235 cm optional Diameter of sampling tube 31/ 63 mm optional Manual pump With a negative pressure meter, made of stainless steel or brass.

Electrical pump With negative pressure meter, accuracy: 1.6%, range: 0 to 250 hPa, power supply: 12 V rechargeable battery, built-in battery charger, charging time is about 7 hours, about 5 hours of continuous use, weight: 5 kg Origin: China
