Qt 1000 50 Double Tipping Bucket Flowmeter - China

Product description: Surface runoff is the flow of water that occurs when excess water from rain, meltwater, or other sources flows over the earth's surface.

This might occur because soil is saturated to full capacity, or because rain arrives more quickly than soil can absorb it.

Surface runoff is a major component of the water cycle.

It is the primary agent in soil erosion by water.

QT series tipping bucket flowmeter can be used to monitor no-pressure, low-head, and small discharge flow of surface or underground runoff.

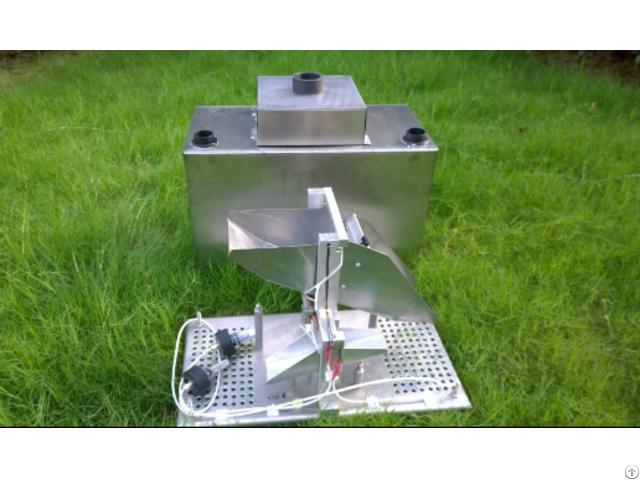

QT-1000/50 Double tipping bucket flowmeter Features Stainless steel, suitable for long-term use in extreme environment

Data logger achieves NEMA 6 and IP67 standard, suitable for outdoor use

Power supply is simple, CR-2032 3V lithium battery, no need of solar panel and storage battery

Suitable for monitoring of surface runoff and underground runoff

Specification Tipping Bucket Flowmeter Sensor Type Tipping bucket with magnetic reed switch Output Contact closure Capacity 1000ml/50ml Cable length 3m Size 600 mm * 260 mm * 500 mm Material SUS304 stainless steel \ aluminum alloy Orifice diameter 50 mm Weight 8 Kg Temperature Measurement Measurement range -20~+70℃ Accuracy ±0.53℃(0~50℃) Resolution 0.14℃(25℃) Drift 0.1℃/year Response time 10 min, usually 90% (2m/s air flow) Data Logger Timestamp resolution 1.0 s Time Accuracy 1 min / month (25 ℃) Operating temperature -20~+70℃ Power supply CR-2032 3V lithium battery, usually can last for one year Storage capacity 64KB: 16K ~ 23K for recording events, 25K ~ 30K for recording incidents and temperature Material polypropylene shell; Stainless steel screws; Buna O-rings, PVC cable insulation Weight 50 g Size 71 mm*33 mm*23 mm Origin: China
