Pzb Mining Explosion Proof Shotcrete Machine - China
price: 2456.00 Dollar US$
Advantages of PZB Mining Explosion Proof Shotcrete Machine 1 - PZB Series Explosion Proof Shotcrete Machine is a high-effective shotcrete machine, which is mainly used for dry-mix, damp-mix shotcreting and steel fiber reinforced shotcreting.
2 - Nonadhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
3 - Fourpoint clamping device make it easy to adjust the press between sealing plate and rotordisk so as to no air and dust leak and prolong consumption parts life., 4 - Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shocrete quality.
Parameter of PZB Mining Explosion Proof Shotcrete Machine Item PZ-5B PZ-7B
Output 5m3/h 7m3/h
Max.
convey dist Horizontal: 200m Vertical: 20m Horizontal: 200m Vertical: 20m
Water cement ratio ≤0.4 ≤0.4
Max.
Aggregate.
size 20mm 20mm
Hose inner size 51mm 64mm
Operating air pressure 0.4~0.6MPa 0.4~0.6MPa
Air consumption 7-8 m3/min 8-10 m3/min
Rotor diameter 438mm 480mm
Motor power Y132m-6-5.5(KW) Y160m-6-7.5KW
Voltages 380v or as your requirement 380v or as your requirement
Overall dimension(mm) 1600X700X1150 1600X700X1150
Whole weight 800kgs 900kgs

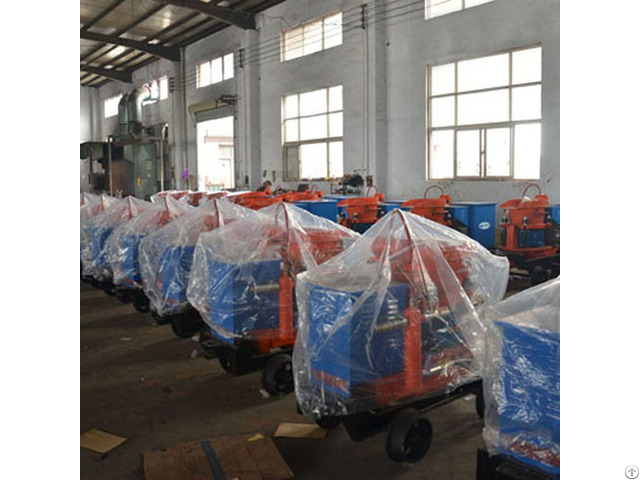

Pictures of PZB Mining Explosion Proof Shotcrete Machine
Company Contact:
- Posted By: Shandong China Coal Group
- Phone: 865372350961
- Address: No.11 Kaiyuan Road, Jining , China
- Email:
- Website: https://www.chinacoalintl.com
Published date: May 30, 2019
- Business Description: Shandong China Coal Industrial&Mining Supplies Group Co., Ltd
(hereinafter referred to as china coal) is a group company .
which is a
collection of e commerce, machinery manufacturing, software, research
and development, modern logistics of large diversified industrial group.
