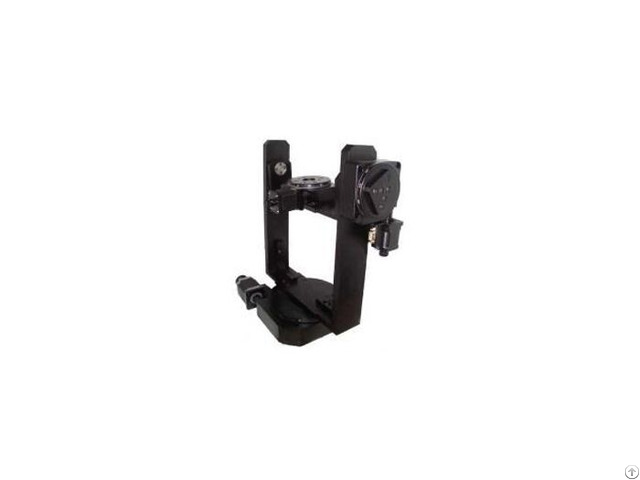

PT-SW01 3D Electric Sliding Table, XYZ Optical Rotating Stage

Motorized XY Integral Combinating Stage

Motorized Stage

SPECIFICATION:

Equipped with conductive magnetic ring, any rotation without fear of cable winding.

Item Number PT-SW01

Structure Range for θX, θY, θZ 360° of Continuous Rotation Platform Ø100mm Drive Mechanism Worm Gare Travel Guide Bearing Worm Gear Ratio 180 : 1 Stepper Motor (1.8°) SST57D3301 Material Aluminum Alloy - Black-Anodized Load Capacity 10Kgs Weight 10Kgs

Accuracy Design Resolution 0.01°=36″(Non-MS Driver)0.005°=1.8″(20M S Drive) Max Velocity 25°/sec Repeatability 0.005°=1.8″ Absolute Accuracy 0.01°=36″ Run-Out of Top Plate 15μm Backlash 0.005°=1.8″ Eccentricity 20μm Lost Motion 0.005°=1.8″ Parallelization 100μm

we will provide excellent service and competitive price for you, we are expecting become your long-term partner in China.

PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages, High quality China Motorized Linear Stage.

They can be any combination, building block structure, can satisfy any scene usage requirement.

ADVANTAGE:

We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets.

We have a group of experienced high-level processing technicians.

Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.

Provide high quality products for users.
