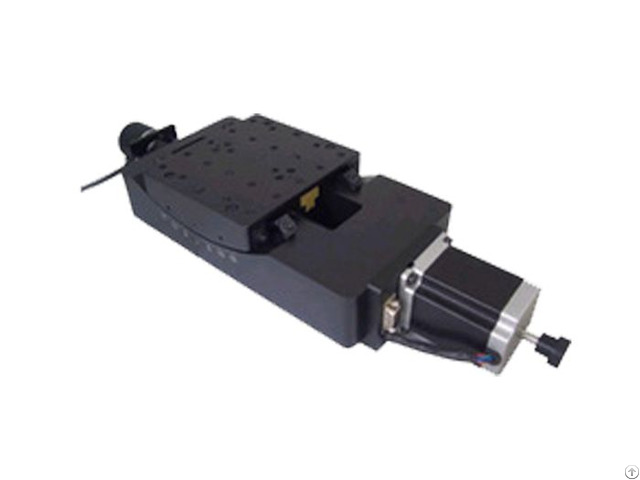

Pt Gd306 Motorized Goniometer Stage Electric Platform - China

Specification: Item Number: PT-GD306 Rotation Range: ±15° Platform: 100mm × 130mm Drive Mechanism: Worm Gear Travel Guide: Crossed Roller Bearing Worm Gear Ratio: 304 : 1 Height of Rotation Stage: 120 mm±0.2 mm Stepper Motor (1.8°): SST57D2121 - Stepping Motor with 2-Phases & 1.8° of Step Angle Material – Finish: Aluminum Alloy - Black-Anodized Load Capacity: 15Kg Weight: 9kg Accuracy Specifications Design Resolution: ≈0.005°≈18″(Non-MS Driver); ≈1″(20MS Drive) Rotation Center Deflection Accuracy: 0.03 mm Velocity: 10°/sec Repeatability: ±3” Absolute Accuracy: ±8” Backlash: ±3” Lost Motion: 2″
