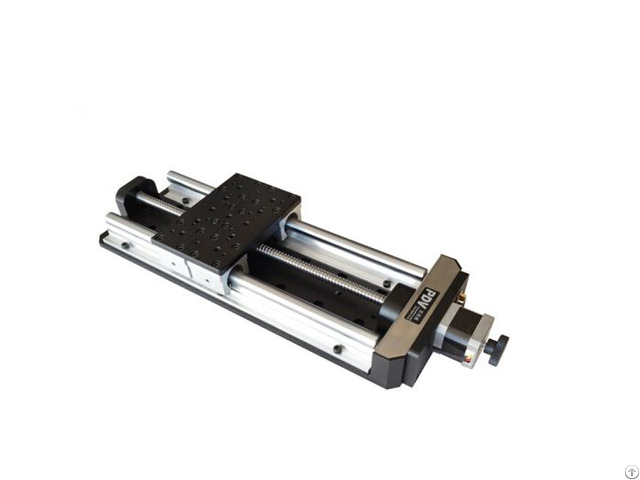

PT-GD130P Motorized Linear Stage

Motorized Linear Stage

Motorized Stage

SPECIFICATION:

Item Number PT-GD130P 50 PT-GD130P 100 PT-GD130P 150 PT-GD130P 200 PT-GD130P 300 PT-GD130P 400 PT-GD130P 500

Structure Travel Range 50mm 100mm 150mm 200mm 300mm 400mm 500mm Platform 150mm × 100mm 150mm × 100mm 150mm × 100mm 150mm × 100mm 150mm × 100mm 150mm × 100mm 160mm × 130mm Bearing Construction High Precise Recirculating Ball Screw (4mm of leading) High Precise Recirculating Ball Screw (5mm of leading) Travel Guide Supported High Precise Linear Ball Bearing Stepper Motor (1.8°) STP-42D3016 (Stepping Motor with 2-Phases & 1.8° of Step Angle) SST59D3300 (Stepping Motor with 2-Phases & 1.8° of Step Angle) Material Aluminum Alloy - Black-Anodized Load Capacity 30kgs Weight 3.8kgs 4kgs 4.5kgs 4.8kgs 5.5kgs 6.8Kgs 7.2Kgs

Accuracy Design Resolution 20μm/Pulse, Non-MS Driver 1μm/Pulse, 20MS Driver 20μm Pulse, Non-MS Driver 1.25μm Pulse, 20MS Driver Max Velocity 40mm/sec 50mm/sec Repeatability 5μm Absolute Accuracy 8μm Straightness 10μm 30μm 60μm Parallelization 10μm 15μm 20μm Pitching 80" Yawing 60" Backlash 3μm 5μm

Others Optional Accessories Brake Function (-Z), Grating Scales (-G), Servo Motor (-D) and Dust-proof Cover (-F) For other travel ranges of translation stages, please let us know.

Origin Sensor and Limit Switches are existing.

we will provide excellent service and competitive price for you, we are expecting become your long-term partner in China.

1 High precise ball screw provides high-performance

2 Supported high precise linear ball bearing ensures accurate linear motion and high-loading.

3 The model PT-GD130P series is ideal for the long travel range by the material of aluminum alloy sections

4 Original position and limit switches at both ends which can supply the precision positioning and protection

5 The PT-GD130P positioning stages are ideally suited for applications that require long travel and high-load capacity such as measurement and inspection.

Microswitches allow homing and overdriving protection in both forward and reverse directions.

ADVANTAGE:

We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets.

We have a group of experienced high-level processing technicians.

Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.

Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.
