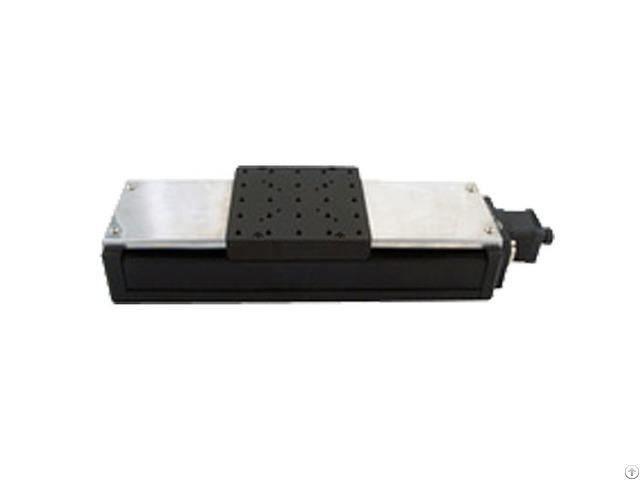

PT-GD105 High Precision Motorized Linear Stage

Motorized Linear Stage

Motorized Stage

SPECIFICATION:

Item Number PT-GD10550 PT-GD105100 PT-GD105150 PT-GD105200 PT-GD105300 PT-GD105400 PT-GD105500

Structure Travel Range 50mm 100mm 150mm 200mm 300mm 400mm 500mm Platform 120mm × 125mm 120mm × 125mm 120mm × 125mm 120mm × 125mm 120mm × 125mm 160mm × 160mm 160mm × 160mm Bearing Construction High Precise Recirculating Ball Screw (4mm of leading) High Precise Recirculating Ball Screw (5mm of leading) Travel Guide Supported High Precise Linear Ball Bearing Stepper Motor (1.8°) STP-57BXG152 (Stepping Motor with 2-Phases & 1.8° of Step Angle) Material Aluminum Alloy - Black-Anodized Load Capacity 20kgs 30Kgs 50Kgs Weight 2.8kgs 6kgs 6.5kgs 7kgs 7.5kgs 8Kgs 8.5Kgs

Accuracy Design Resolution 20μm/Pulse, Non-MS Driver 1μm/Pulse, 20MS Driver 25μm Pulse, Non-MS Driver1.25μm Pulse, 20MS Driver Max Velocity 40mm/sec 50mm/sec Repeatability 5μm Absolute Accuracy 8μm Straightness 5μm 6μm 8μm Parallelization 10μm 15μm 20μm Pitching 25" 50” 60” Yawing 20" 25” 30” Backlash 3μm 5μm

Others Brake Function (-Z), Grating Scales (-G), Servo Motor (-D) and Dust-proof Cover (-F) Product features

New construction, new technology;the key index has up to the international level of the similar products by strictly inspection .

This series products are used to laser precision processing, three dimensional scanning measurement system and so on .

Best-selling products

PDV offers high precision electric platform, high precision manual platform, optical plate, microscope bracket, long working distance objective, microscope lighting source, optical bench products for laboratory light path building.



we will provide excellent service and competitive price for you, we are expecting become your long-term partner in China.

1 High precise ball screw provides high-performance and high-accuracy

2 High-load capacity was acceptable for the high precise linear slide guide in vertical movement

3 The simple design with the high-performance is very popular for both our home and abroad customers

4 Z, XY, XZ, XYZ or Multi-axis stages for special demanding can be achieved by the model

5 For longer travels can be designed

ADVANTAGE:

We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets.

We have a group of experienced high-level processing technicians.

Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.

Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.
