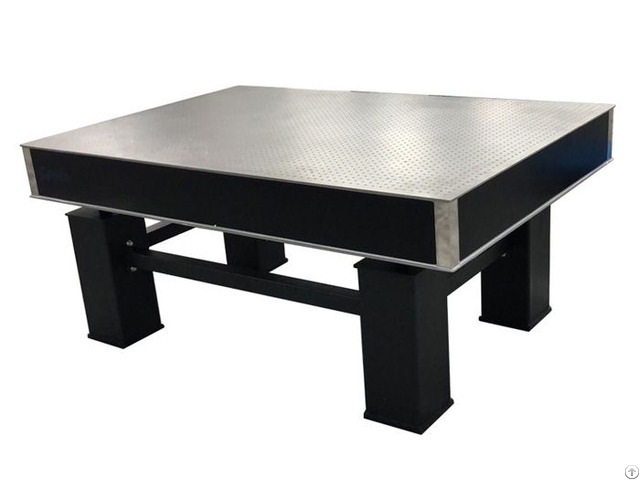

Pt 01pg Precision Optical Table Vibration Isolation Platform Cellular - China

Specification:

Specification Length-Width-Height Note 600x600x80 600-600-800 4 Support, M6 screw hole distance 25mm 750x750x80 750-750-800 4 Support, M6 screw hole distance 25mm 900x600x80 900-600-800 4 Support, M6 screw hole distance 25mm 1200x800x100 1200-800-800 4 Support, M6 screw hole distance 25mm 1500x1000x100 1500-1000-800 4 Support, M6 screw hole distance 25mm 1800x1200x150 1800-1200-800 4 Support, M6 screw hole distance 25mm 2000x1000x150 2000-1000-800 4 Support, M6 screw hole distance 25mm 2000x1200x150 2000-1200-800 4 Support, M6 screw hole distance 25mm 2000x1500x150 2000-1500-800 4 Support, M6 screw hole distance 25mm 2400x1200x200 2400-1200-800 4 Support, M6 screw hole distance 25mm 2400x1500x200 2400-1500-800 4 Support, M6 screw hole distance 25mm 3000x1000x250 3000-1000-800 6 Support, M6 screw hole spacing 50mm 3000x1200x250 3000-1200-800 6 Support, M6 screw hole spacing 50mm 3000x1500x250 3000-1500-800 6 Support, M6 screw hole spacing 50mm 3500x1200x250 3500-1200-800 6 Support, M6 screw hole spacing 50mm 3500x1500x250 3500-1500-800 6 Support, M6 screw hole spacing 50mm 4000x1500x250 4000-1500-800 6 Support, M6 screw hole spacing 50mm 4500x1500x300 4500-1500-800 6 Support, M6 screw hole spacing 50mm 5000x1500x300 5000-1500-800 8 Support, M6 screw hole spacing 50mm 6000x1500x300 6000-1500-800 8 Support, M6 screw hole spacing 50mm 8000x1500x300 8000-1500-800 8 Support, M6 screw hole spacing 50mm Product details:

Precision vibration isolation optical platform: PT-01PG Product Features: ■ Large optical vibration isolation platform, the outer frame is made of high quality medium carbon steel plate with strong rigidity, small deformation and good welding performance.

■ The vibration isolation layer can limit the vibration response by using honeycomb structure materials with low natural frequency and strong vibration resistance.

■ The panel is made of high permeability stainless steel plate, which is practical, beautiful and wear-resistant after fine grinding.

■ Vibration isolation bracket adopts composite material, solid damping vibration isolation, stable and reliable structure, suitable for the environment vibration of good experimental sites.

■ The adjusting support part adopts wear-resistant screw and flat thrust ball bearing, easy to use and reliable.

■ Flatness: < 0.05mm/m2 - ■ Surface roughness: 0.8μm ~ 1.6μm ■ Natural frequency: 3Hz ~ 6Hz.

■ Amplitude: < 5μm.

■ Repeated positioning accuracy: +0.05mm.

Advantage:

PDV is a company integrating R&D, production and sales.

Specializing in the production of optical plates, optical experimental adjustment stands, precision manual displacement tables, optical slides and other precision equipment.

Complete specifications, can meet the needs of different users, stable quality, won the trust of customers.

Company Contact:

• Posted By: Beijing PDV Instrument Co., Ltd

• Phone: 18060335777

• Address: Zhichun Road, Haidian District, beijing , 北京 , China

• Email:

• Website: https://www.pdvcn.com/

• Business Description: Beijing PDV Instrument Co., Ltd is a collection of optics, precision machinery, automatic control technology independent high-tech research and development enterprises.

  Since 2005, we have been serving the scientific research institutes and universities.

  We have developed the hardware and software system (optical path construction, software development, mechanical circuit design, etc.

  ) according to the needs of customers.

  Through long-term unremitting efforts, the process of building the system to control the optical path and excellent service to customers, we’ve grown into a well-known manufacturer among scientific research, colleges and universities, machinery automation and many other areas.
