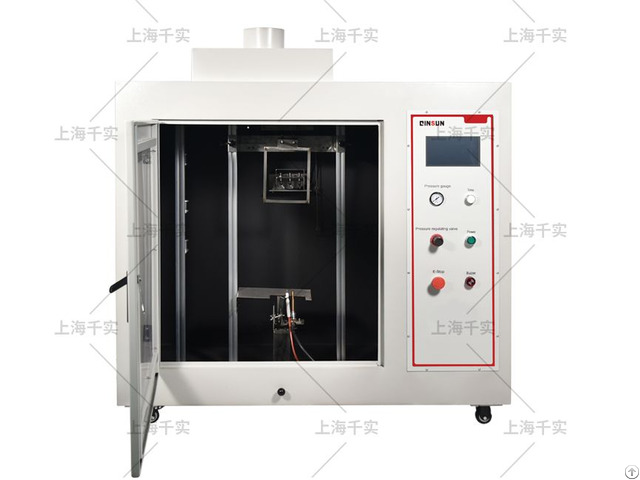

Protective Clothing Flame Spread Test Machine - China

Protective clothing flame spread test machine is designed and manufactured according to the stan-dard of ISO 15025 protective clothing burning test .

It can test the state of flame spread of protective clothing under the impact of small flame.

The instrument is a professional equip-ment, mainly applied for performance test of flame spread which protective clothing in fire by simulation technology.

Technical Parameters： Items Parameters

Dimension ： 1200mm X 600mmx 1200mm

Timer accuracy ： 0.1s

Power supply ： 220v, 50/60Hz Application：

The instrument is applied for the testing of fire hazard using com-bustible materials, like fabric or other similar functional materials.

Technical Parameters：

1 - Combustion chamber is made of stainless steel, high corrosion resistance, long service life.

2 - The instrument is good appearance and generous in design with transparent glass window, easy to observe the test.

3 - All the sample rack are made of stainless steel; good-looking, corrosion-resistant.

4 - Standard burner; horizontal flame height 25mm ± 2mm; vertical flame height 40mm ± 2mm;

nozzle diameter 0.19mm.

5 - Timer for automatic recording and storage.

6 - PLC with touch screen control system can achieve more intelligent test.

Test data are auto-

matically recorded and stored.

7 - Imported brand pressure gauge and control valve for more sable air pressure.

8 - Imported needle valve can precisely control the flame height.

The flame is more stable.

9 - High intelligence, easy to operate.

10 - Two sets of sample racks for surface and bottom burning, all made of stainless steel.

11 - System offers automatic ignition and flame-out.

12 - Flame height gauge equipped, easy to adjust the flame height.

13 - Automatic ignition with high voltage of pulse electronic .

14 - The timing button coordinated with the PLC automatically records and stores the combus-

tion time.

15 - No need of hand-held stopwatch or manuscript for timing.

System can automatically record

the test time and print test reports.

16 - Test time and flame enrichment time can be set on the touch screen so that can meet the test

standards.

17 - Test program for surface burning and bottom-edge burning can be switched on the touch screen.
