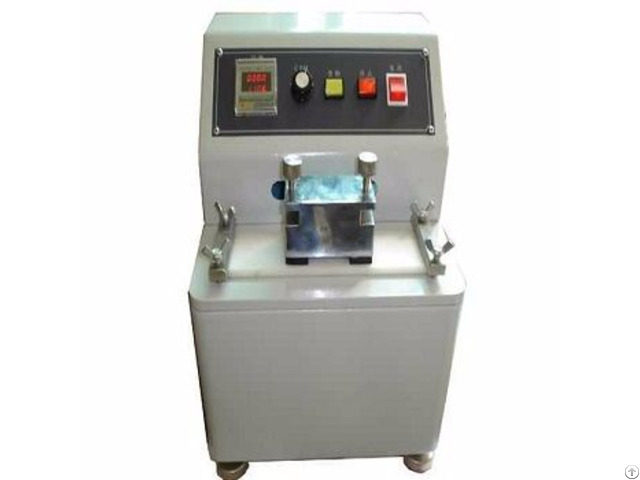

Print Ink Abrasion Resistance Test Machine - China

Ink Rub Tester (Rub & Abrasion Tester) brings new levels of repeatability and convenience to testing the durability of inks and coatings on any printed material.

The instrument is used for testing the scuff, marking and rub resistance of cartons, films and commercial printed material.

This comparative test works by abrading a printed sample against a reference material under known conditions.

The results can be used to identify alternative substrates, better ink and coating formulations or the suitability of finished cartons, films or printed books, magazines and promotional materials.

Printing ink Decolorization test machine, also known as abrasion tester, friction tester, etc., mainly for printing ink for printed abrasion, PS version of the photosensitive layer surface coating wear resistance and related products abrasion resistance test trials.

Ink Abrasion tester is used in the dry grinding test, wet test, bleaching change test, paper fuzzy test, and special friction test.

Effective analysis of the print is poor abrasion resistance, poor adhesion, ink off, ink marking, PS version of the anti-Indian forces and other products, coatings with poor low hardness performance.

Standard:

ASTM D5264 "with Sutherland - standard test method for printed material abrasion resistance test made by printed board tester"

GB7706 “Toppan decoration print"

Ink Abrasion tester is compatible with TAPPI-UM486, ASTMD5264 with JISK5701 and ISO9000 standards.

Principle:

To be ground layer and Friction Paper of the Ink Abrasion tester samples, under the action of the load friction body, rubbing each other at a predetermined speed.

Make measuring the reducing amount of the density before and after the friction, or decrease the amount of coating thickness, to determine the wear resistance with the ink layer or coating.

Ink Abrasion tester with Microcomputer control, LCD dynamic display, mechatronics principle, rubbing test set.

Before the test, the test requirements of the standard, the number of friction or custom operator input control system, the test can achieve automatic control, and after the end of each test beep.

Control system with power and memory function, which is, after each power cycle, keeping parameters state before the power was last entered.

Ink wear tester actuator using high-precision micro-motor gear driven friction body friction linear reciprocating motion Product Features:

Microcomputer control, LCD blue large LCD dynamic display, film inching operation panel;

Input Test parameters on keyboard, and also with the power and memory;

The exact implementation of national standards, compatible with international standards;

Control Solutions for printed ink poor wear resistance; low rub resistance, easy to fall off and so on;

Test, effective control of the production process, to avoid return losses due to poor quality.

Compatible with PS version of the photosensitive layer of the abrasion resistance test, make analysis and forecast PS version of the anti-Indian forces Technical Parameters:

Power supply: AC220V ± 10% 2A 50HZ;

The friction velocity: (21, 43, 85, 106) r / min

Measuring range: (1 to 9999) times;

Friction load: GB: 20N;

ASTM: 0.9kg (2Lb)

Friction distance: 60 mm

machine interface: 3.1 "@ 128 × 64 dot matrix LCD screen (blue), English menu;

Working environment: temperature (20 ± 10) ° C;

Humidity <85%;

Dimensions: 335 × 295 × 295 mm;

Product Weight: about 22 kg;
