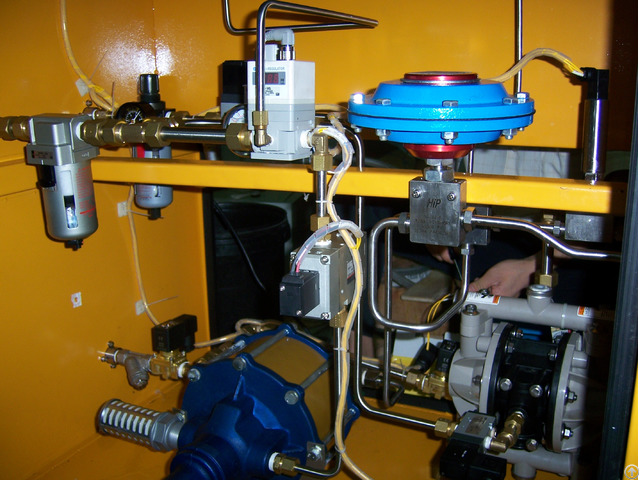

Pressure 0 1000mpa Hydraulic Test Bench - China

System Introduction: Hydraulic test bench (hydraulic system) is used for hydraulic test, pressure-proof test, hydraulic burst test, hydrostatic burst test, pressure testing and calibration, hydraulic injection, hydraulic leaking test, volume expansion rate etc.

Technical Details:

Ø Working pressure: 0～1000MPa (consult factory for higher pressure); Ø Working medium: water, hydraulic oil or other fluid; Ø Medium temp: room temperature (other temperature available); Ø Environment temp: -45℃~120℃; Ø Test quantity: 1-10 pcs (extensible); Ø Pressure measuring precision: ±0.5%FS; Ø Pressure controlling precision: ±1% FS; Ø Drive air: 0.5MPa≤P≤0.8MPa; Ø Power supply: AC380V-430V, 50/60HZ (other voltage available); Ø Control method: Auto/manual

Features: · Stable and reliable IVS-Test Software features easy operation and user-friendly interface.

) · Most of the liquid mediums are applicable.

· Fully automated test stand with high speed data acquisition system · History screen and real-time display of pressure-time curves.

· Test data saved automatically when emergency or power down happens accidentally.

· Test report exported upon request · Wide range and adjustable testing pressure, rate of pressure rise and frequency.

· Various of test waveform such as Sine wave, square wave, sawtooth, etc.

are optional · All high pressure valves, pumps, tubing and fittings made in USA with 316SS guarantee the high testing precision and stability.

Company Contact:

• Posted By: Shenzhen IVS Flow Control Co., Ltd

• Phone: +86 0755-86069900

• Address: Bldg A, Yisong Industrial Park, No. 9, Jie Jiabao Rd, Shuitian, Shiyan, Shenzhen, China 518108 , Shenzhen , Guangdong , China

• Email:

• Website: https://www.ivsna.com

• Business Description: IVS Tester Corporation, founded in 1999, has been focusing on designing the manufacturing test equipments.

  Thanks to SC Hydraulic Engineering Co.

  and High Pressure Equipemnt Co, we had succesfully developped the Hydrostatic & Burst tester, Impulse tester, Leak detection tester, Volumetric Expansion Tester, etc.

  Our prefessional R & D team had made the ultimate tests on ultra pressure and finest precision possible for our heavy national industies including:

  Oil & Gas Industry:

  Hydraulic and Gas Leak test on Well control devices, Wellhead safety valve control panel;

  Automotive Industry:

  Various test stands on Brake hose, Fuel hose, Engine body, Muffler, Safety valves, high pressure pipes;

  Military Industry:

  Missile head cooling system, test stands on Valves and Instruments;

  Aerospace Industry:

  Various test stands on Aerospace hose, valves, and executor;

  Fire protection, Hose and Cylinder Industry:

  Hose tester, Cylinder tester, Impulse tester, Cyclic tester and etc.
