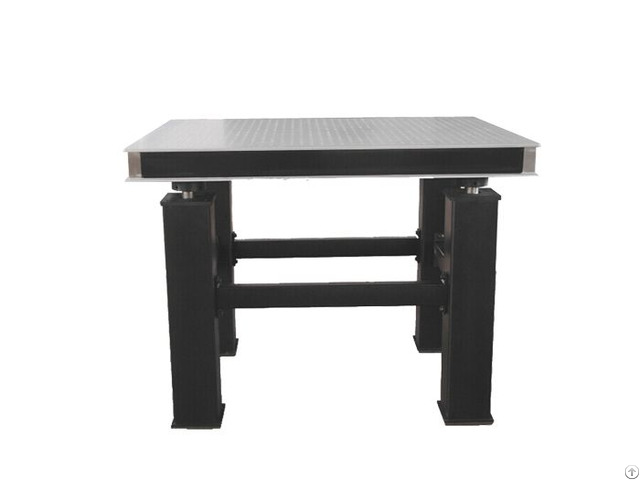

Precise Optical Table, Optical Isolation Platform, Honeycomb Optical Table PT-01PT

Optical Table

Optical Table, Breadboard, Support

SPECIFICATION:

Precision Optical Isolation Platform: PT-01PT

The Optical Breadboards provide high performance at an economical price.

These all-steel breadboards are also an ideal laboratory platform for optical and laser experiments.

Since prices and shipping method vary based on size and weight, please contact our sales engineer for a quotation including shipping.

Surface Flatness: 0.8-1.6mm/m2 Surface Coarseness: 0.02-0.05 mm/m2 Inherent Frequency: 0.88-1.0Hz Swing: <1μm Flatness/Unevenness: 0.04m m/ m2 Pressure of work: 0.2-0.5(Mpa)

Model Size(mm) Thickness (mm)(C) Mounting Hole Type (mm) Aperture Surface Flatness (mm) Weight(kg)

PT-01PT300x300 300x300 50 25x25 M6 0.8 10

PT-01PT300x600 300x600 50 25x25 M6 1.0 20

PT-01PT300x900 300x900 50 25x25 M6 1.1 30

PT-01PT300x1200 300x1200 50 25x25 M6 1.3 40

PT-01PT600x600 600x600 50 25x25 M6 1.2 40

PT-01PT600x900 600x900 50 25x25 M6 1.4 60

PT-01PT600x1200 600x1200 50 25x25 M6 1.5 80

PT-01PT900x900 900x900 50 25x25 M6 1.4 90

PT-01PT900x1200 900x1200 50 25x25 M6 1.6 120

PT-01P0T900x200 900x2000 50 25x25 M6 1.6 125

PT-01PT1200x1200 1200x1200 50 25x25 M6 1.6 130
