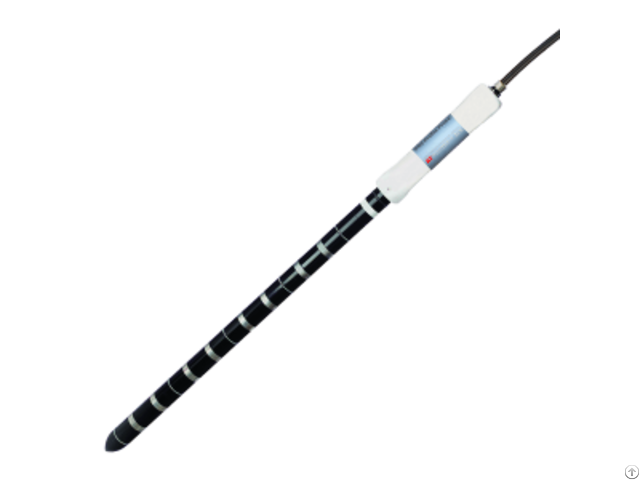

Pr2 Profile Probe Analogue Version - China

No other soil moisture probe system enables you to monitor your soil water profiles with such ease and flexibility.

Install an access tube into the soil, insert the PR2 Profile Probe and press the HH2 [Read] button to display an instantaneous reading, or connect the PR2 to a data logger (GP2 or DL6) and leave the system to record soil moisture changes over time.

Specification

For Analogue PR2 and SDI-12 PR2 Measurement Volumetric water content

Accuracy ± 0.04 m3 - m-3 (4%) With soil-specific calibration

Soil moisture measurement range Full accuracy over:

0 to 0.4 m3 - m-3

Full range : 0 to 1.0 m3 - m-3

Salinity range 50 to 400 mS.

m-1

Salinity errors included in calibration

Temperature range Full accuracy over: 0 to 40°C

Output (ANALOGUE)

0 to 1.0 V differential

PR2/6: x6 outputs, PR2/4: x4

(SDI-12)

Digital

Power requirement (ANALOGUE)

5.5-15 V, PR2/6: ~120 mA for 1s

PR2/4: ~80 mA for 1s

Minimum 7.5 V with 100 m cable

(SDI-12)

Power consumption <60 mA at 12 V DC

Sleep current <2 mA at 12 V DC

Environmental IP67 (when installed in access tube)

Sample volume -95% sensitivity within a cylinder of diameter 200mm

Sample volume is weighted towards soil immediately surrounding the rods

Dimensions and weight PR2/6: length 1350 mm PR2/4: length 750 mm

Both: 25.4 mm diameter

PR2/6: weight 1.2 kg PR2/4: weight 0.8 kg

Sensor calibrations Individual sensors are interchangeable

Recalibration advised every 3 years (depending on use)

Soil calibrations Generalised Mineral and Organic soil calibrations are supplied
