Pp110 15 Precise Electric Translating Platform - China

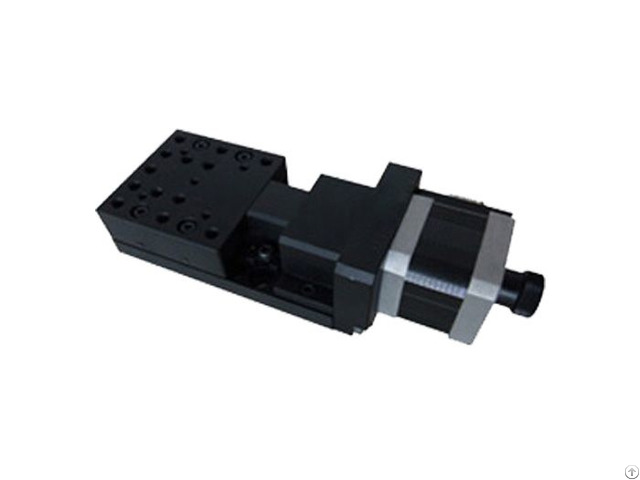

PP110-15 Precise Electric Translating Platform

Motorized Linear Stage

Motorized Stage

SPECIFICATION: Item Number: PP110-15

Travel range: 15mm

Platform: 65mm×65mm

Bearing Construction: Grinding Lead Screw(1mm of leading)

Travel Guide: Crossed Roller Bearing

Stepper Motor(1.8°): 28 stepper motor- SHINANO

Material: Aluminum Alloy - Black-Anodized

Load Capacity: 5kgs

Weight: 0.93kgs

Accuracy Specifications

Design Resolution: 5μ/Pulse (Non-MS Driver)

Max Velocity: 5mm/sec

Bi-directional: 2μm

Absolute Accuracy: 10μm

Straightness: 5μ

Parallelization: 20μm

Pitching: 30”

Yawing: 25″

Backlash: 2μm

Lost Motion: 2μm standard stepper motor and DB9 interface, choose to any controller according to requirement

The back of motorized stages has handwheel, it is for convenience for adjustment;

Standard hole is so easy for combine with other units, ensure convenience for multi-dimensional system;

ADVANTAGE: We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets.

We have a group of experienced high-level processing technicians.

Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.

Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.
